-5%
DGS-1010MP
Model: DGS-1010MP – D-Link Gigabit Unmanaged POE Switches
Details: D-Link Ports: 8 Gigabit PoE ports + 1 Gigabit electrical port + 1 Gigabit optical port, backplane bandwidth: 20G, packet forwarding rate: 14.9M, PoE power: single port maximum 30W/ whole machine maximum 125W, power supply : AC 100-240V built-in power supply, size: 280x180x44mm (11 inches, iron case), desktop type can be mounted on the rack, non-network management PoE switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DGS-1010MP Overview

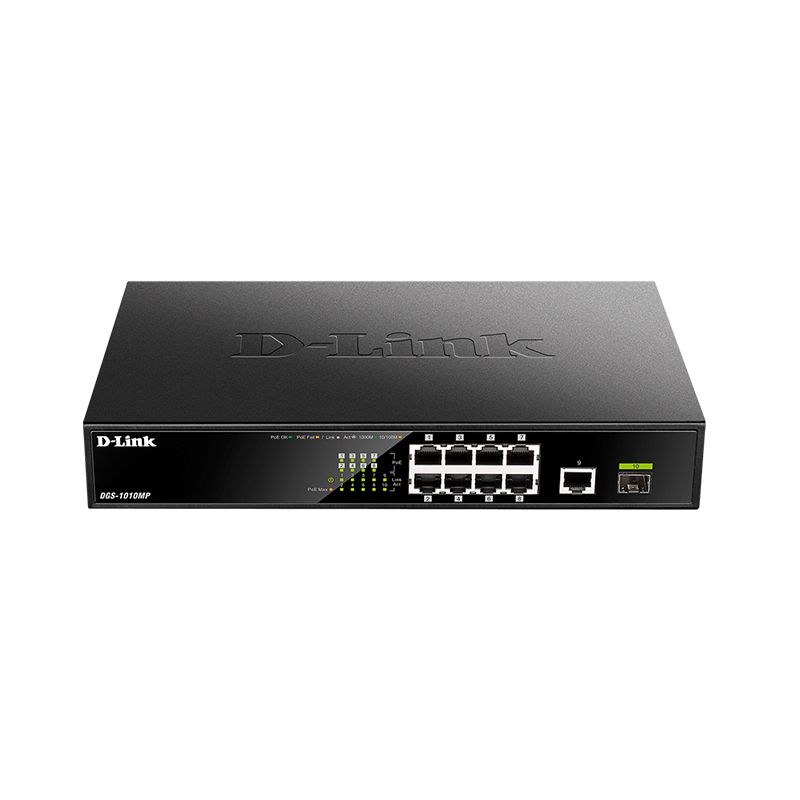

Quick Specs Figure 1 shows the appearance of DGS-1010MP.
Table 1 shows the Quick Specs.
| Brand | D-Link |
| Model | DGS-1010MP |
| Ports | 8 Gigabit PoE ports + 1 Gigabit electrical port + 1 Gigabit optical port |
| Backplane Bandwidth | 20G |
| Packet Forwarding Rate | 14.9M |
| PoE Power | Single port maximum 30W, whole machine maximum 125W |
| Power Supply | AC 100-240V built-in power supply |
| Size | 280x180x44mm (11 inches) |
| Material | Iron case |
| Form Factor | Desktop type, can be mounted on the rack |
| Network Management | Non-network management |
| Layer | Layer 2 |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 8K |
| Input Voltage Range | 100-240V AC |
| Power Consumption | Maximum 150W |
| Operating Temperature | 0��C to 50��C (32��F to 122��F) |
| Storage Temperature | -10��C to 70��C (14��F to 158��F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Jumbo Frame Support | Up to 9216 bytes |
| Certification | FCC, CE, RoHS |
