-5%
DGS-1100-16
Model: DGS-1100-16 – D-Link Add Points Switches
Details: D-Link 16 Gigabit electrical ports, switching capacity: 68G, packet forwarding rate: 24M, Smart switch, desktop type can be installed on the rack, support Web management
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DGS-1100-16 Overview

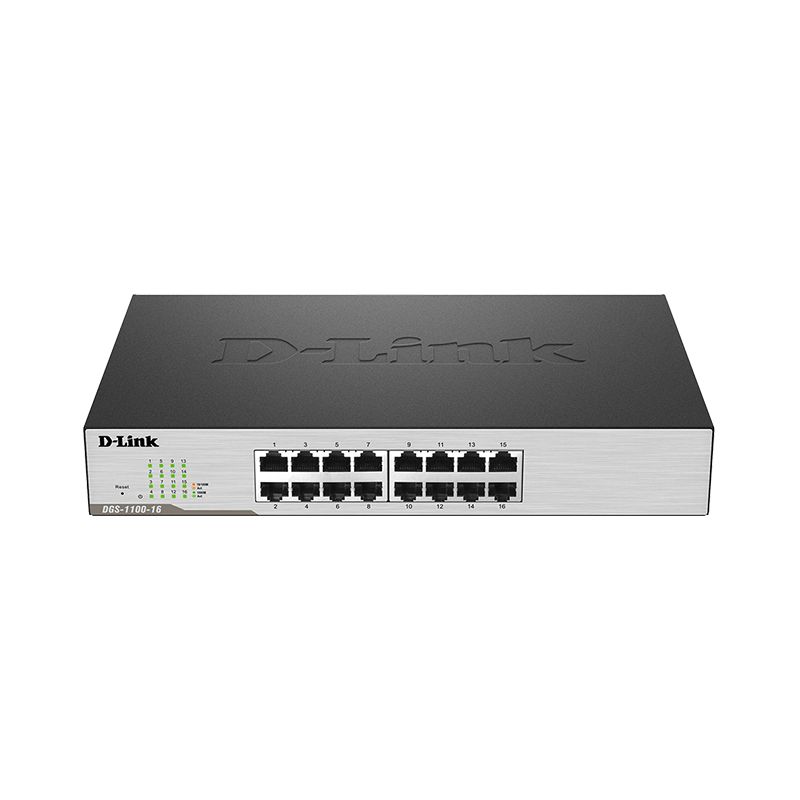

Quick Specs Figure 1 shows the appearance of DGS-1100-16.
Table 1 shows the Quick Specs.
| 1000Base-T Interface | 16 |
| Auto MDI/MDIX | Yes |
| 10/100/1000BASE-T ports | 16 |
| Switch Capacity | 32 Gbps |
| Max. Packet Forwarding Rate | 23.81Mpps |
| Power Input | AC: 100-240V |
| Comply witd RoHS 6 | Yes |
| Energy Efficiency Etdernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| MAC Address Table Size | 8K |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Link Aggregation Group Per Device | 8 |
| Max Port Per Link Aggregation Group | 8 |
| Port Mirroring | Yes |
| Jumbo Frame | 9216 bytes |
| Loopback Detection (LBD) | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 64 |
| 802.1Q VLAN | Yes |
| VLAN Groups | 128 |
| Port-based VLAN | Yes |
| Voice VLAN | Yes |
| Auto Surveillance VLAN | Yes |
| Asymmetric VLAN | Yes |
| Number of Queue | 4 |
| Class of Service (CoS) | Yes |
| Two Rate tdree Color Marker (trTCM) | Yes |
| Rate Limiting | Yes |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| SSL | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| D-Link Safeguard Engine | Yes |
| DoS Attack Prevention | Yes |
| Port-based Bandwidtd Control | Yes |
| Cable Diagnostics | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Web-based GUI | Yes |
| SNMP | Yes |
| SNMP Trap | Yes |
| TFTP Client | Yes |
| System Log | Yes |
| LLDP | Yes |
| D-Link Discover Protocol (DDP) | Yes (v0.25) |
| DHCP/BootP Client | Yes |
| Dual Images | Yes |
| Ping | Yes |
| D-Link Network Assistant | Yes |
| Smart Wizard | Yes |
| Surge/Lightning Protection (AC Power Inet) | 2kV |
| Surge/Lightning Protection (All Etdernet Ports) | 1Kv |
| Store-and-Forwarding | Yes |
| Dimension | 280x 180x 44mm |
| Weight | 1.27 Kg |
| Operation Temperature | -5-50°C |
| Storage Temperature | -40-70°C |
| Operation Humidity | 0%-95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Operating Altitude | 2000 m |
| Maximum Power Consumption | 10.1 W |
| Standby Power Consumption | 3.4 Watts |
| Maximum Heat Dissipation | 34.46 BTU/hr |
| Acoustic | 0 dB(A) |
| MTBF | 710,519 hours |
| CPU Speed | 125MHz |
| DRAM Size | 128KBytes |
| Flash Memory Size | 16 MBytes |
| Packet Buffer Size | 4.1 MBytes |
| FAN | Fanless |
