DGS-3130-30S

Original price was: $766.00.Current price is: $727.70.

Model: DGS-3130-30S – D-Link Aggregation Switches
Details: D-Link 24 Gigabit optical ports + 2 10 Gigabit electrical ports + 4 10 Gigabit optical ports, switching capacity: 336G/3.36T, packet forwarding rate: 144Mpps/166Mpps, three-layer stackable management switch, support DHCP server, machine Shelf
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DGS-3130-30S Categories: , ,
Description

DGS-3130-30S Overview

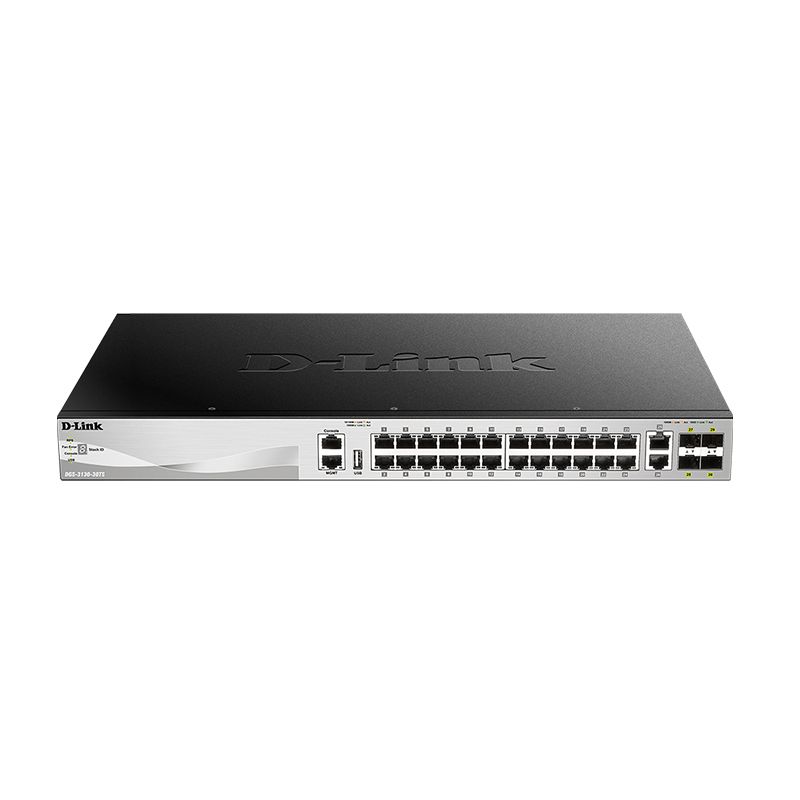

Quick Specs Figure 1 shows the appearance of DGS-3130-30S.

Table 1 shows the Quick Specs.

SFP ports 24
10GBASE-T ports 2
10G SFP+ ports 4
RJ-45 Console port 1
RJ-45 Management port 1
USB 2.0 port 1
1000Base-T Interface 0
1000Base-T PoE Interface 0
1000M SFP Interface 24
100M SFP Interface 0
10G SFP+ Interface 4
10GBase-T Interface 2
Console Port 1
USB Port 1
Switch Capacity 168 Gbps
Max. Packet Forwarding Rate 125 Mpps
Store & Forwarding Forwading Yes
Control Module Redundancy Yes
Dimension 440(W) x 44(H) x 250(D) mm
Operation Temperature 0 ~ 50 °C
Storage Temperature – 40 ~ 70 °C
Operation Humidity 10% ~ 90% RH
Storage Humidity 5% ~ 90% RH
Operating Altitude 2000m
Maximum Power Consumption 82.4 W
Standby Power Consumption 43.9W
Maximum Heat Dissipation 281.16 BTU/h
MTBF 487,153 hours
Power Input AC：100 ~ 240 V
Redundant Power Supply DPS-500A
CPU Speed 1.25GHz
DRAM Size 1GB DDR4
Flash Memory Size 256MB NAND
Packet Buffer Size 2MB
FAN Yes
Comply with RoHS 6 Yes
Energy Efficiency Ethernet (EEE) Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
Power Saving By LED Shut-Off Yes
Power Saving By Port Shut-Off Yes
Power Saving By Port Standby Yes
Power Saving By System Hibernation Yes
Maximum PoE Budget 0
Physical Stacking Yes
Physical Stacking Bandwidth 80G, with stacking port trunking
Units Per Physical Stack 9
D-Link Single IP Management (SIM) Yes
Units Per SIM Stack 32
MAC Address Table Size 16,384 (16K)
Black Hole MAC Address Yes
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
802.1D Spanning Tree (STP) Yes
802.1w Rapid Spanning Tree (RSTP) Yes
802.1s Multiple Spanning Tree (MSTP) Yes
BPDU Filtering Yes
Root Restriction Yes
BPDU Restriction Yes
G.8032 ERPS Yes
Multiple ERPS Ring Yes
802.1AX Link Aggregation Yes
802.3ad Link Aggregation Yes
Link Aggregation Group Per Device 32
Max Port Per Link Aggregation Group 8
Port Mirroring Yes
Flow-based (ACL) mirroring Yes
RSPAN Yes
Jumbo Frame 9,216 (9K) Bytes
Loopback Detection (LBD) Yes
L2 Protocol Tunneling Yes
IGMP Snooping Yes
Max IGMP Snooping Groups 1,024
IGMP Snooping Fast Leave Yes
IGMP Authentication Yes
IGMP Proxy Reporting Yes
MLD Snooping Yes
MLD Snooping Groups 1,024
MLD Proxy Reporting Yes
MLD Snooping Fast Leave Yes
802.1Q VLAN Yes
VLAN Groups 4094
Port-based VLAN Yes
802.1v Protocol-based VLAN Yes
MAC-based VLAN Yes
Voice VLAN Yes
Auto Surveillance VLAN Yes
GVRP Yes
Double VLAN (Q in Q) Yes
Selective Q in Q Yes
VLAN Translation Yes
ISM VLAN (Multicast VLAN) Yes
Asymmetric VLAN Yes
Private VLAN Yes
Super VLAN Yes
VLAN trunking Yes
IP Interface Yes
Max Number of IP Interface 16
Loopback Interface Yes
ARP Entries 2,048
ARP Yes
Gratuitous ARP Yes
IPv6 Neighbor Discovery (ND) Yes
ND Entries 1,024
UDP Helper Yes
Routing Table Entry 1,024
L3 Forwarding Table Entry 4,096
Equal-Cost Multi-Path Route (ECMP) Yes
Weighted-Cost Multi-Path Route (WCMP) Yes
Default Route Yes
Static Route Yes
Route Preference Setting Yes
Policy-based Route (PBR) Yes
Null Route Yes
Route Redistribution Yes
VRRP Yes
RIPv1 Yes
RIPv2 Yes
RIPng Yes
Number of Queue 8
Class of Service (CoS) Yes
Two Rate Three Color Marker (trTCM) Yes
Single Rate Three Color Marker (srTCM) Yes
Remark 802.1p priority Yes
Remark ToS/DSCP Yes
Rate Limiting Yes
Time based QoS Yes
Queue Handling Yes
Strict Priority Queue (SPQ) Yes
Weighted Round Robin (WRR) Yes
Weighted Deficit Round Robin (WDRR) Yes
SPQ + WRR Yes
Weighted Random Early Detection (WRED) Yes
Simple Random Early Detection (SRED) Yes
Port-based Bandwidth Control Yes
Queue-based Bandwidth Control Yes
Flow-based bandwidth Control Yes
Max Access Control List (ACL) Entries Yes
MAC Access List Yes
IP Access List Yes
IPv6 Access List Yes
Time based ACL Yes
CPU Interface Filtering Yes
SSH Yes
SSL Yes
Port Security Yes
Broadcast/Multicast/Unicast Storm Control Yes
Traffic Segmentation Yes
DHCP Snooping Yes
IP Source Guard Yes
IP-MAC-Port Binding (IMPB) Yes
IPv6 Snooping Yes
Dynamic ARP Inspection (DAI) Yes
IPv6 Route Advertisement (RA) Guard Yes
DHCPv6 Guard Yes
D-Link Safeguard Engine Yes
IPv6 ND Inspection Yes
L3 Control Packet Filtering Yes
NetBIOS/NetBEUI filtering Yes
DHCP Server Screening Yes
DHCP Client Filtering Yes
BPDU Attack Protection Yes
ARP Spoofing Prevention Yes
DoS Attack Prevention Yes
802.1X Yes
Host based 802.1X Authentication Yes
Port based 802.1X Authentication Yes
Identity Driven 802.1X Policy Assignment Yes
Web-based Access Control (WAC) Yes
Port based WAC Authentication Yes
Host based WAC Authentication Yes
Identity Driven WAC Policy Assignment Yes
MAC-based Access Control (MAC) Yes
Host based MAC Authentication Yes
Port based MAC Authentication Yes
Compound Authentication Yes
Identity Driven MAC Policy Assignment Yes
Microsoft® NAP Support Yes
Guest VLAN Yes
Authentication for Management Access Yes
Privilege Level for Management Access Yes
RADIUS Yes
RADIUS Accounting Yes
TACACS+ Yes
Authentication Database Failover Yes
Trusted Host Yes
Cable Diagnostics Yes
802.3ah Ethernet Link OAM Yes
D-link Unidirectional Link Detection (DULD) Yes
Dying Gasp Yes
802.1ag Connectivity Fault Management (CFM) Yes
Y.1731 OAM Yes
Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
Network Time Protocol (NTP) Yes
Simple Network Time Protocol (SNTP) Yes
Web-based GUI Yes
Telnet Server Yes
Command Line Interface (CLI) Yes
Telnet Client Yes
SNMP Yes
SNMP Trap Yes
TFTP Client Yes
Secured FTP (SFTP) Server Yes
ZModem Yes
Command Logging Yes
System Log Yes
SMTP Yes
RMONv1 Yes
LLDP Yes
RMONv2 Yes
LLDP-MED Yes
D-Link Discover Protocol (DDP) Yes
DHCP/BootP Client Yes
DHCP Auto-configuration Yes
DHCP relay Yes
DHCP Server Yes
Flash file system Yes
PPPoE Circuit-ID Tag Insertion Yes
Multiple Images Yes
Dual Configurations Yes
Dual Images Yes
Editable Login Banner Yes
Multiple Configurations Yes
Editable System Prompt Yes
DNS Client Yes
Password Recovery Yes
Debug Command Yes
Password Encryption Yes
MTU Setting Yes
Ping Yes
Traceroute Yes
