Sold out
DH-HAC-HDW1220GN-M
Model: DH-HAC-HDW1220GN-M – Dahua 2MP CVI
Details: 2MP HDCVI Fixed Eyeball Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DH-HAC-HDW1220GN-M Overview

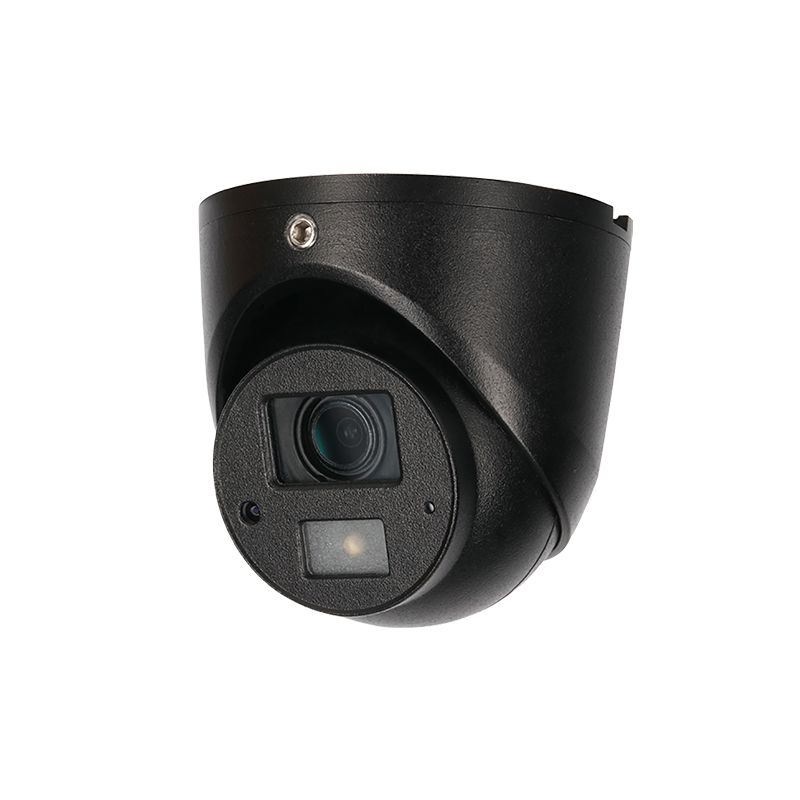

Quick Specs Figure 1 shows the appearance of DH-HAC-HDW1220GN-M.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H)��1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100,000s, NTSC: 1/30~1/100,000s |
| Minimum Illumination | 0.02Lux/F2.0 (Color), 0Lux/F2.0 (IR on) |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98ft) |
| IR LEDs | 2 |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| Backlight Compensation | BLC / HLC / DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Lens | 3.6mm fixed lens |
| Video Output | 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (Selectable) |
| Video Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Power Supply | DC12V ��20% |
| Power Consumption | Max 3.5W |
| Operating Conditions | -30��C ~ +60��C (-22��F ~ +140��F) / Less than 95% RH (no condensation) |
| Ingress Protection | IP67 |
| Dimensions | 85mm��108mm (3.35″��4.25″) |
