DQS-5000-32S/AF

$0.00

Model: DQS-5000-32S/AF – D-Link Data Center Switches
Details: D-Link 32 40G QSFP+ optical ports, data center switch, support Leaf-Spine, Top-of-Rack (ToR) architecture, support OpenFlow, VXLAN, FCoE, DCB, support DLINK OS and third-party OS. Dual AC power supply modules, front and rear ventilation.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

SKU: DQS-5000-32S/AF Categories: , ,
Description

DQS-5000-32S/AF Overview

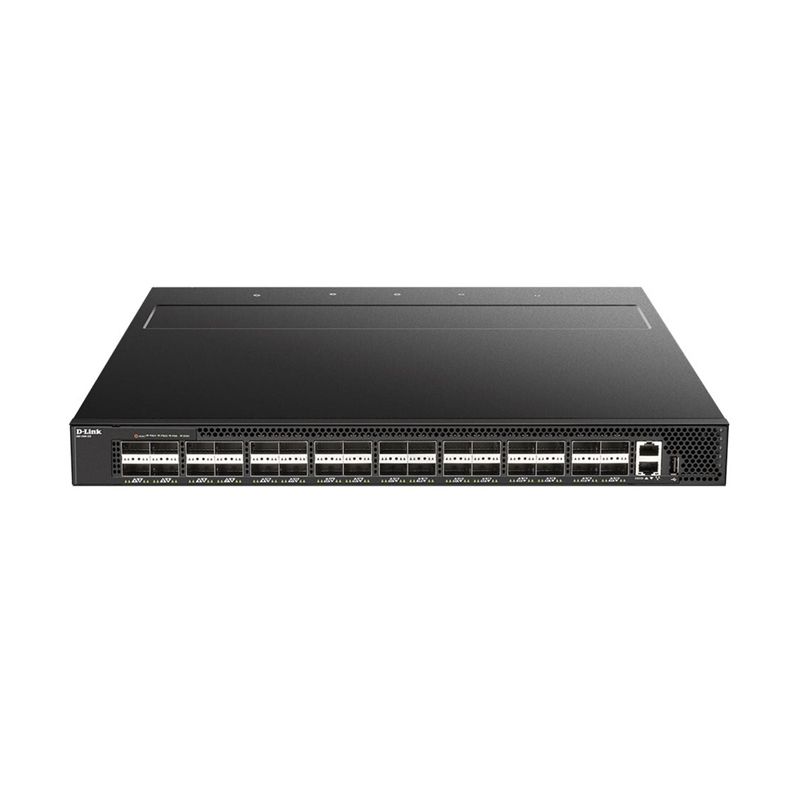

Quick Specs Figure 1 shows the appearance of DQS-5000-32S/AF.

Table 1 shows the Quick Specs.

40G QSFP+ ports 32
USB 2.0 port 1
RJ-45 port 1
RJ-45 Management port 1
Switch Capacity 2.56 Tbps
Max. Packet Forwarding Rate 1,428 Mpps
Fans 4 x fans
Acoustics Max: 69.8 dB Min: 59.5 dB
Dimensions (W x D x H) 440 x 406 x 44 mm (17.32 x 16 x 1.73 inch)
Operating Temperature 0 to 45 ºC (32 to 113 ºF)
Packet Buffer Memory 12 MB
MAC Address Table 288K
Operating Humidity 5% to 95% RH, non-condensing
Max. Forwarding Rate 1,428 Mpps (1.428 Bpps)
OOB Management Port 1 x 10/100/1000BASE-T RJ-45 port
Console Port 1 x RJ-45 console port
Power Input 1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz
Heat Dissipation (Max.) 1385.27 BTU/hr
Maximum Heat Dissipation 1,385.27 BTU/hr
Maximum Power Consumption 406 W
MTBF 85,937 hours
