DQS-5000-54SQ28/AF
Model: DQS-5000-54SQ28/AF – D-Link Data Center Switches
Details: D-Link 48 25G SFP28 optical ports + 6 100G QSFP28 optical ports, data center switch, support Leaf-Spine, Top-of-Rack (ToR) architecture, support OpenFlow, VXLAN, FCoE, DCB, support DLINK OS and third-party OS. Dual AC power supply modules, front and rear ventilation
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DQS-5000-54SQ28/AF Overview

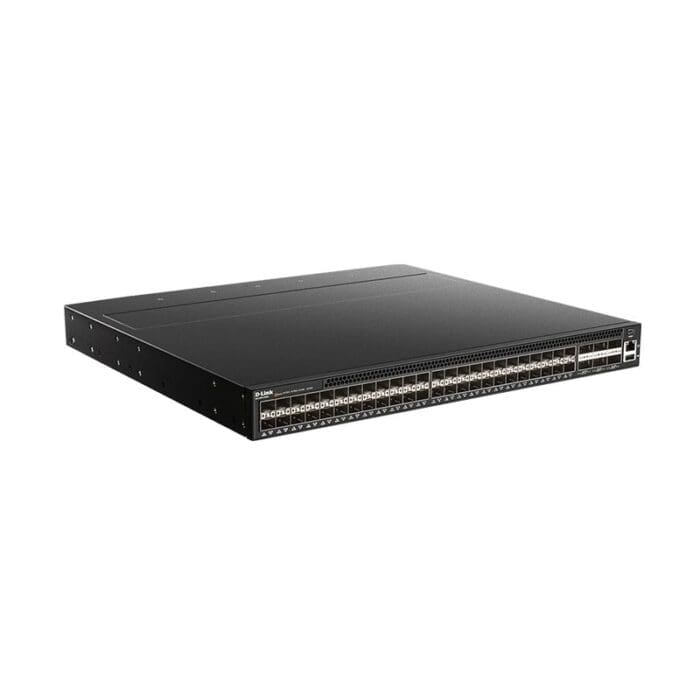

Quick Specs Figure 1 shows the appearance of DQS-5000-54SQ28/AF.
Table 1 shows the Quick Specs.
| 25G SFP28 ports | 48 |
| 100G QSFP28 ports | 6 |
| USB 2.0 port | 1 |
| mini-USB port | 1 |
| RJ-45 Management port | 1 |
| Switch Capacity | 3.6 Tbps |
| Max. Packet Forwarding Rate | 2,380 Mpps |
| OOB Management Port | 1 x 10/100/1000BASE-T RJ-45 port |
| Switching Capacity | 3.6 Tbps |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Heat Dissipation (Max.) | 1347.74 BTU/hr |
| MTBF | 205,500 hours |
| Interfaces | 48 x 25G SFP28 ports 6 x 100G QSFP28 ports 1 x USB 2.0 port |
| Console Port | 1 x mini-USB console port |
| MAC Address Table | 40K |
| Maximum Power Consumption | 395 W |
| Power Input | 1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
| Fans | 4 x fans |
| Operating Temperature | 0 to 45 ºC (32 to 113 ºF) |
| Packet Buffer Memory | 16 MB |
| Max. Forwarding Rate | 2,380 Mpps (2.380 Bpps) |
| Acoustics | Max: 72.3 dB Min: 58.6 dB |
| Dimensions (W x D x H) | 440 x 406 x 44 mm (17.32 x 16 x 1.73 inch) |
| Maximum Heat Dissipation | 1,347.74 BTU/hr |
