-5%
DS-19A08-BN
Model: DS-19A08-BN – Hikvision Access Control
Details: 485 Hybrid Panel(8 zones on board)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-19A08-BN Overview

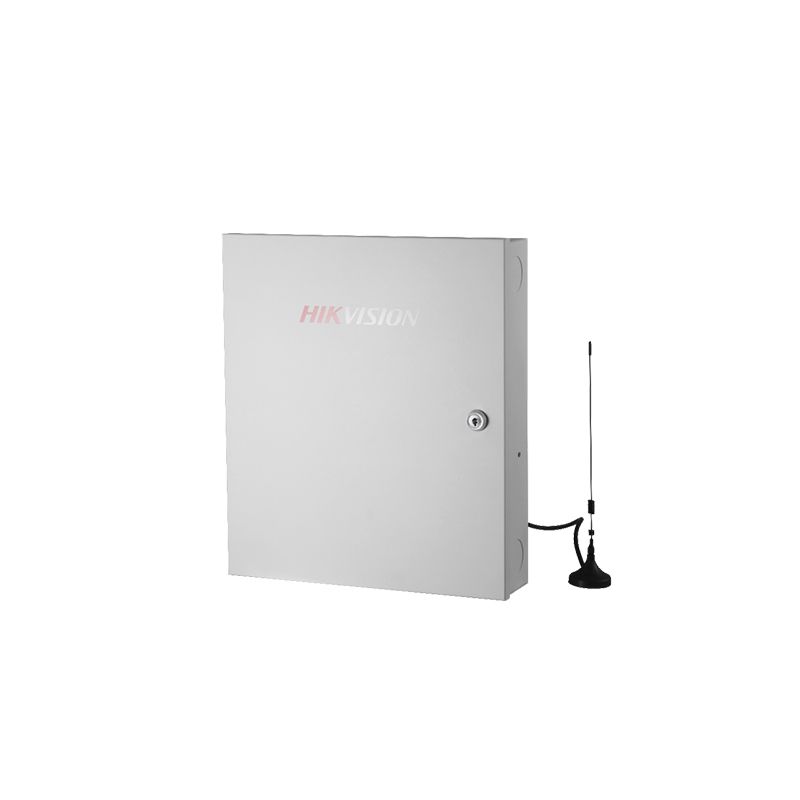

Quick Specs Figure 1 shows the appearance of DS-19A08-BN.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Product Name | DS-19A08-BN |
| Panel Type | 485 Hybrid Panel |
| Number of Zones | 8 Zones on Board |
| Alarm Inputs | 8 Programmable Zone Inputs |
| Communication Bus | RS-485 |
| Keypads Supported | Up to 3 Keypads |
| Power Supply | 12V DC |
| Backup Battery | 12V/7Ah Sealed Lead Acid |
| Operating Voltage | 10.5 to 14V DC |
| Power Consumption | Max 350mA |
| Communication Protocols | RS-485, TCP/IP |
| Operating Temperature | -10��C to +55��C (14��F to 131��F) |
| Humidity | 10% to 90% non-condensing |
| Dimensions | 146 x 187 x 35mm |
| Mounting Options | Wall Mount |
| Backup Time | Up to 12 hours |
| Enclosure Material | Plastic |
| Certifications | CE, FCC, RoHS |
| Color | White |
| Control Panel Interfaces | LCD Display, Keypad |
| Installation Location | Indoor |
