DS-1H18S/E
Model: DS-1H18S/E – Hikvision Transmission and Display Accessories
Details: Video Balun
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-1H18S/E Overview

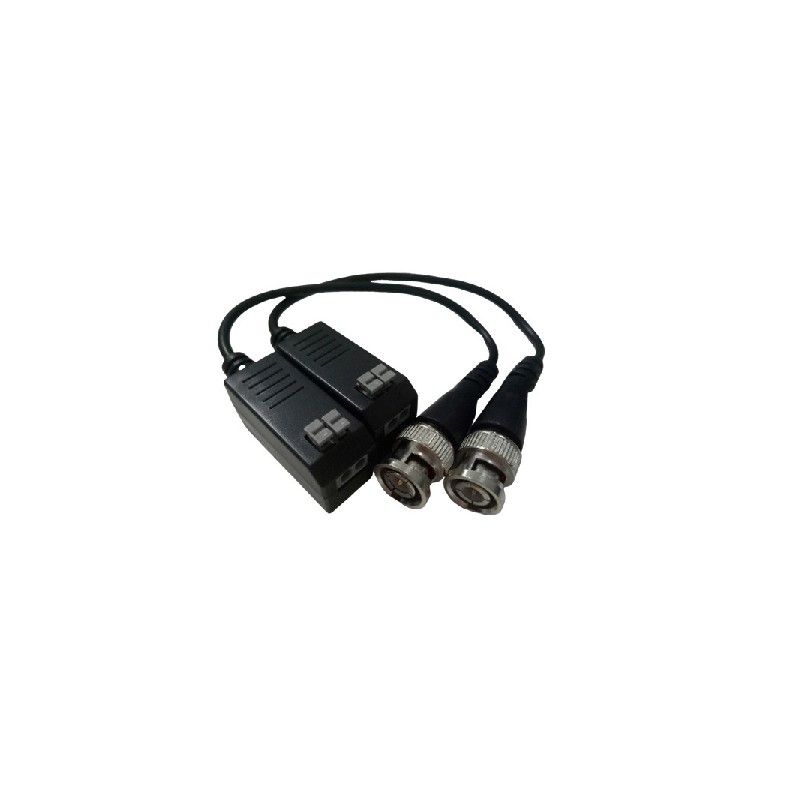

Quick Specs Figure 1 shows the appearance of DS-1H18S/E.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Product Type | Video Balun |
| Model | DS-1H18S/E |
| Transmission Distance | Up to 200 meters |
| Video Input | 1 x BNC Connector |
| Connector Type | BNC Male to RJ45 Female |
| Video Formats | CVBS, HDCVI, AHD, HDTVI |
| Surge Protection | Yes |
| ESD Protection | Yes |
| Frequency Response | DC to 8 MHz |
| Impedance | 75 Ohm (BNC), 100 Ohm (UTP) |
| Common Mode Rejection Ratio | Up to 60 dB |
| Casing Material | ABS Plastic |
| Color | Black |
| Operating Temperature | -10��C to +55��C |
| Humidity | 0% to 95% (non-condensing) |
| Dimensions | 48 x 16 x 20mm |
| Mounting Type | Direct Plug-in |
| Power | Passive (No External Power Required) |
| Compliance | RoHS |
| Warranty | 1 Year |
