-5%
DS-2CD1043G0-I
Model: DS-2CD1043G0-I – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, 2.8/4/6 mm fixed lens, DWDR, DC12V & PoE, Support mobile monitoring via HikConnect
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD1043G0-I Overview

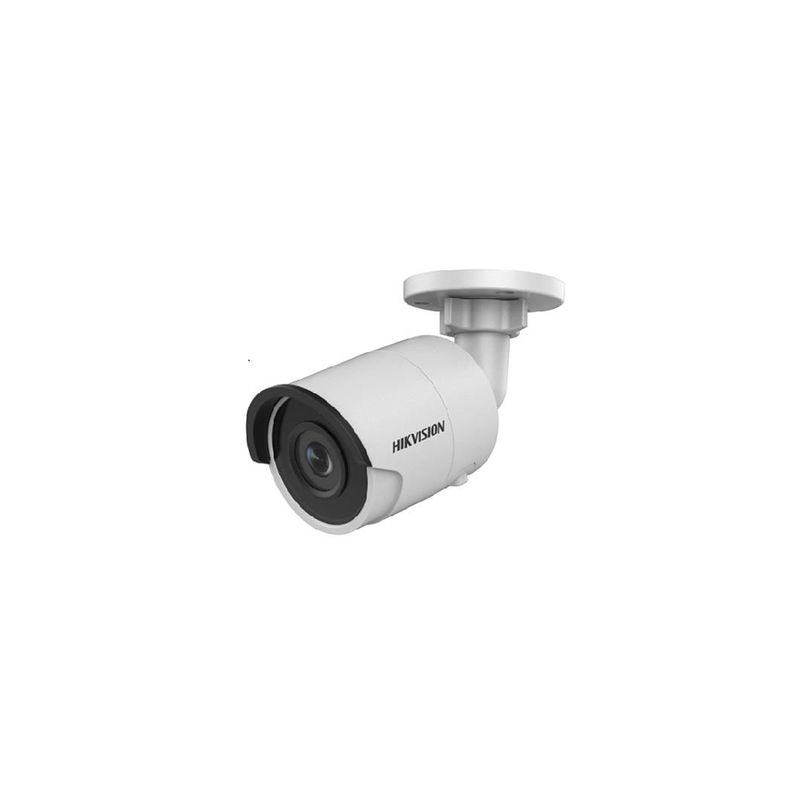

Quick Specs Figure 1 shows the appearance of DS-2CD1043G0-I.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| DNR (Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Angle Adjustment (Bracket) | Pan: 0° to 360°, tilt: 0°to 180°, rotation: 0° to 360° |
| Focal length | 2.8 mm, 4 mm, 6 mm |
| Aperture | F2.0 |
| Focus | No |
| FOV | 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58° |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video Compression | Main stream: H.265/H.264Sub stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Max. Resolution | 2560 × 1440 |
| Main StreamMax. Frame Rate | 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-streamMax. Frame Rate | 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | 5.5.2 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator, and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser | IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+ |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.4 A, Max: 5 WPoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W |
| Protection Level | IP67TVS 2000V lightning protection, surge protection and voltage transient protection |
| Material | Metal & Plastic |
| Dimensions | Ø 70 mm × 172.7mm ( 2.7″ × 6.8″) |
