DS-2CD2043G0-I
Model: DS-2CD2043G0-I – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, EXIR Mini Bullet, IP67 Protection, 2.8/4/6 mm fixed lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2043G0-I Overview

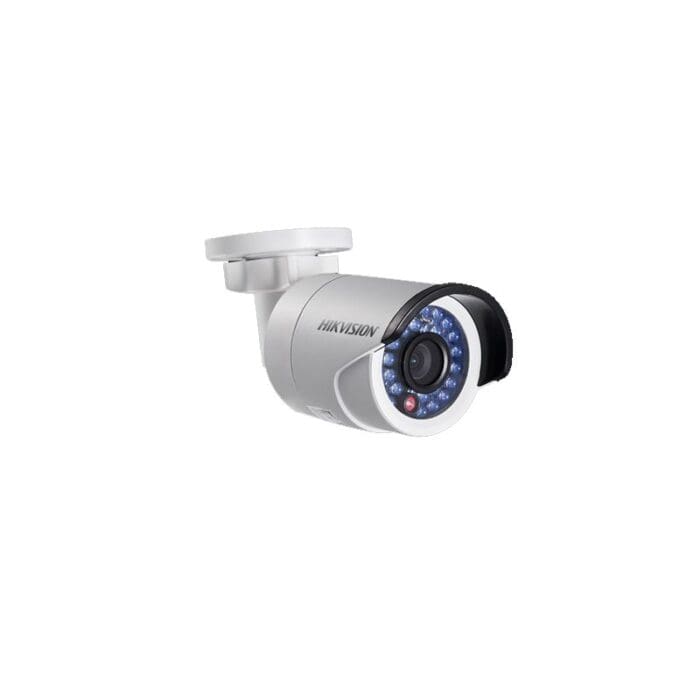

Quick Specs Figure 1 shows the appearance of DS-2CD2043G0-I.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45° |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate | 256Kbps~16Mbps |
| Triple Streams | Yes |
| Max. Image Resolution | 2688 × 1520 |
| Frame Rate | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping | No |
| ROI | 1 fixed region for main stream and sub-stream |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.5A, max. 6WPoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimensions | Camera: Φ 70 × 155.03 mm (Φ 2.8″ × 6.1″) |
