DS-2CD2086G2-IU
Model: DS-2CD2086G2-IU – Hikvision AcuSense Series Network Cameras
Details: Hikvision 4K AcuSense Fixed Mini Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
DS-2CD2086G2-IU Overview

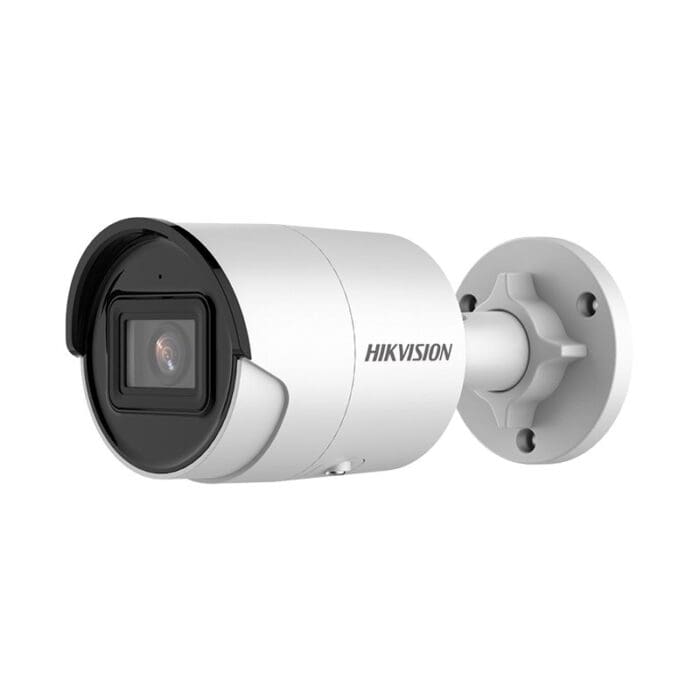

Quick Specs Figure 1 shows the appearance of DS-2CD2086G2-IU.
Table 1 shows the Quick Specs.
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/w: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Max. Resolution | 3840 Ă— 2160 |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Iris Type | Fixed |
Focal Length & FOV | 2.8 mm, horizontal FOV: 110°, vertical FOV: 57°, diagonal FOV: 134°4 mm, horizontal FOV: 88°, vertical FOV: 50°, diagonal FOV: 100°6 mm, horizontal FOV: 60°, vertical FOV: 35°, diagonal FOV: 68° |
Aperture | F1.6 |
Lens Mount | M12 |
DORI | 2.8 mm: D: 89 m, O: 35 m, R: 18 m, I: 9 m4 mm: D: 99 m, O: 39 m, R: 20 m, I: 10 m6 mm: D: 140 m, O: 56 m, R: 28 m, I: 14 m |
Main Stream | 50 Hz: 25 fps (3840 Ă— 2160, 3200 Ă— 1800, 2688 Ă— 1520, 1920 Ă— 1080, 1280 Ă— 720)60 Hz: 24 fps (3840 Ă— 2160)30 fps (3200 Ă— 1800, 2688 Ă— 1520, 1920 Ă— 1080, 1280 Ă— 720) |
Sub-Stream | 50 Hz: 25 fps (640 Ă— 480, 640 Ă— 360)60 Hz: 30 fps (640 Ă— 480, 640 Ă— 360) |
Third Stream | 50 Hz: 10 fps (1920 Ă— 1080, 1280 Ă— 720, 640 Ă— 480, 640 Ă— 360)60 Hz: 10 fps (1920 Ă— 1080, 1280 Ă— 720, 640 Ă— 480, 640 Ă— 360)*Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings. |
Video Bit Rate | 32 Kbps to 16 Mbps |
Bit Rate Control | CBR/VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Environment Noise Filtering | Yes |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
