DS-2CD2087G2-LU
Model: DS-2CD2087G2-LU – Hikvision ColorVu Series Network Cameras
Details: Hikvision 4K ColorVu Fixed Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2087G2-LU Overview

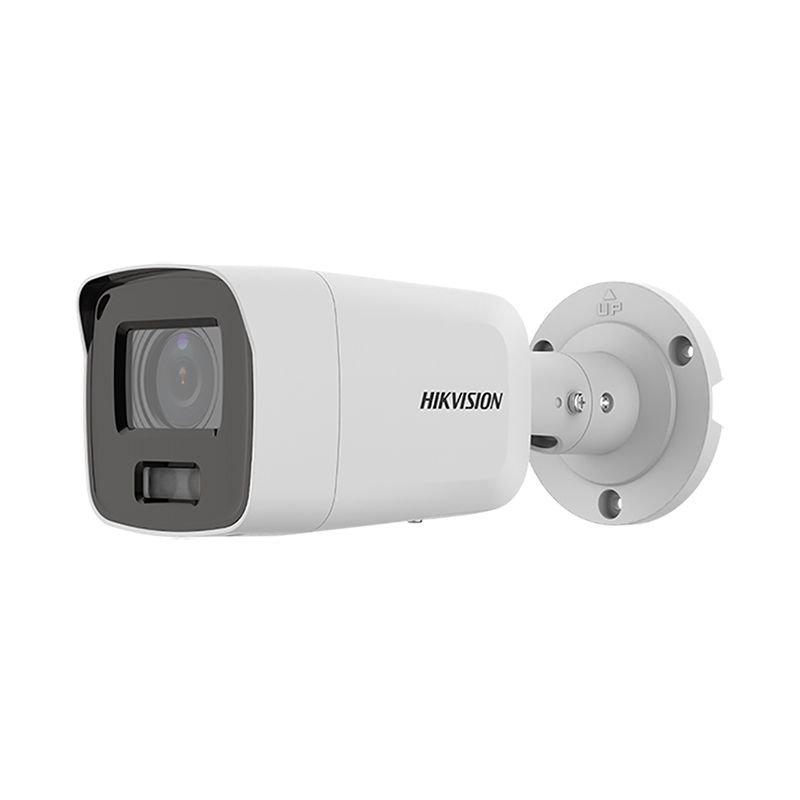

Quick Specs Figure 1 shows the appearance of DS-2CD2087G2-LU.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.0, AGC ON), B/w: 0 Lux with Light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Max. Resolution | 3840 × 2160 |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris Type | Fixed |
| Focal Length & FOV | 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62° |
| Aperture | F1.0 |
| DORI | 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m |
| Main Stream | 50 Hz:25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:24 fps (3840 × 2160)30 fps (3200 x 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Environment Noise Filtering | -U: Yes |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Web Browser | Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
