DS-2CD2146G2-I(SU)
Model: DS-2CD2146G2-I(SU) – Hikvision AcuSense Network Cameras
Details: 4 MP AcuSense Fixed Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2CD2146G2-I(SU) Overview

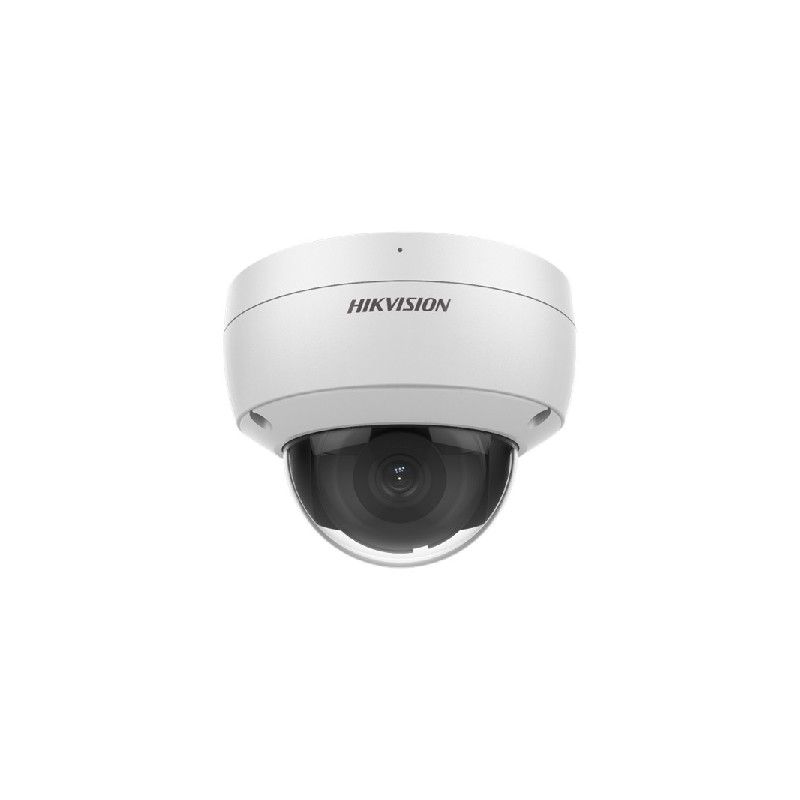

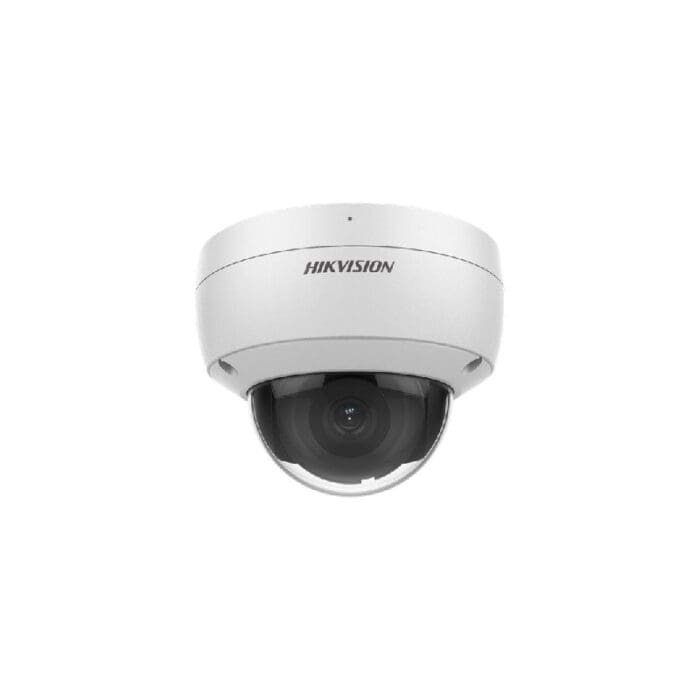

Quick Specs Figure 1 shows the appearance of DS-2CD2146G2-I(SU).
_1.png)
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2CD2146G2-I(SU) |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Max Resolution | 2688 x 1520 |
| Min. Illumination | 0.0036 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Lens | 2.8 mm/4 mm/6 mm fixed lens |
| Field of View | 2.8 mm: horizontal FOV 108��, vertical FOV 73��, diagonal FOV 127�� |
| IR Range | Up to 30 m (98 ft) |
| Day & Night | IR cut filter with auto switch |
| WDR | 120 dB |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/G.729/AAC |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Operating Conditions | -30 ��C to 60 ��C (-22 ��F to 140 ��F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC �� 25%, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5 A, max. 6W PoE: (802.3af, 36-57 V), 0.2 A to 0.1 A, max. 7.5 W |
| Dimensions | ? 129.1 mm �� 97.7 mm (? 5.08″ �� 3.85″) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Humanoid Detection | Up to 30m (98ft) |
| Smart Features | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection |
