DS-2CD2147G2-SU
Model: DS-2CD2147G2-SU – Hikvision Pro (EasyIP) Series Network Cameras
Details: Hikvision 4 MP ColorVu Fixed Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2147G2-SU Overview

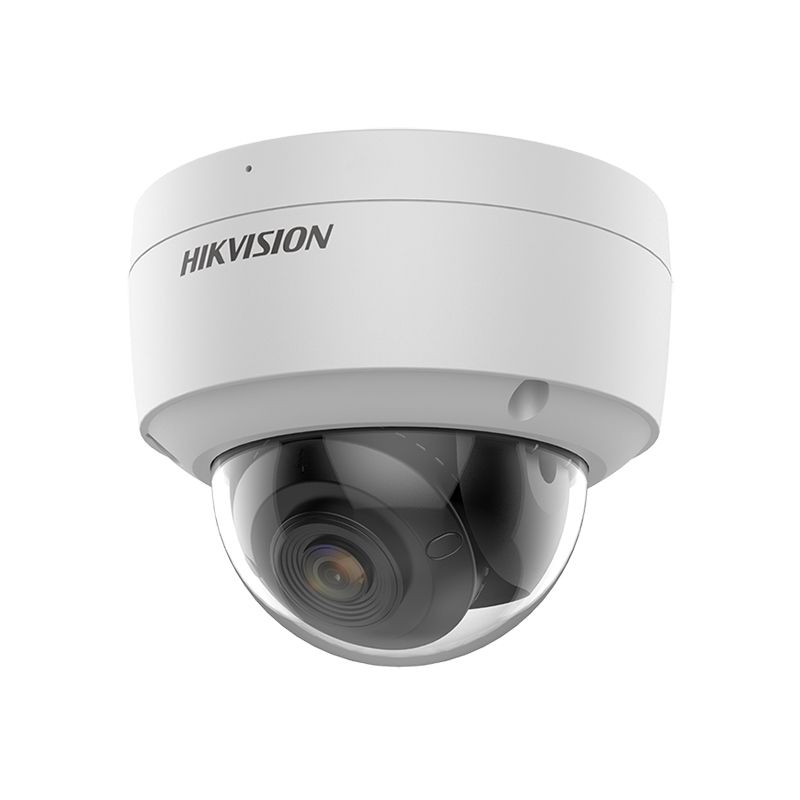

Quick Specs Figure 1 shows the appearance of DS-2CD2147G2-SU.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | 0.0005 Lux @ (F1.0, AGC ON) |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 130 dB |
| Angle Adjustment | Pan: 0°to 355°, tilt: 0°to 75°, rotate: 0°to 355° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Blue Glass Module | Blue glass module to reduce ghost phenomenon |
| Working Distance | 2.8 mm: 2.5 m to∞4 mm: 3.5 m to∞ |
| DORI | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Max. Resolution | 2688×1520 |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720)60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360)60 Hz: 30 fps (640×480, 640×360) |
| Third Stream | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)*Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Environment Noise Filtering | -SU: Yes |
| Audio Sampling Rate | -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
| SNR | ≥52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB |
| Built-In Microphone | -SU: Yes |
| Audio | -SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100Ω, interface type: non-equilibrium, mono sound |
| Alarm | -SU: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Power | 12 VDC±25%PoE: 802.3af, Class 3 |
| Dimension | Ø121.4 mm×100.1 mm (Ø4.8″×3.9″) |
| Package Dimension | 150 mm×150 mm×141 mm (5.9″×5.9″×5.6″)Approx. 580 g (1.2 lb.) |
| With Package Weight | Approx. 820 g (1.6 lb.) |
| Storage Conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
| Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email-SU: audible warning |
| Firmware Version | V5.5.112 |
| Power Consumption And Current | 12 VDC, 0.4 A, max. 5 WPoE (802.3af, 36 V to 57 V), 0.20 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC±25%PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Web Client Language | 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
