DS-2CD2347G2-LU
Model: DS-2CD2347G2-LU – Hikvision ColorVu Series Network Cameras
Details: Hikvision 4 MP ColorVu Fixed Turret Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2347G2-LU Overview

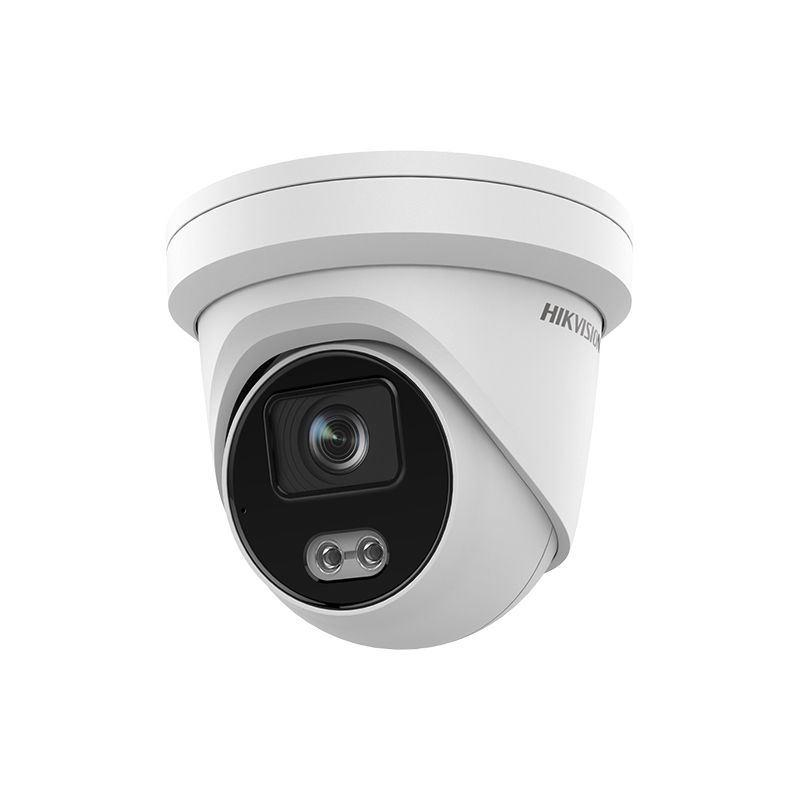

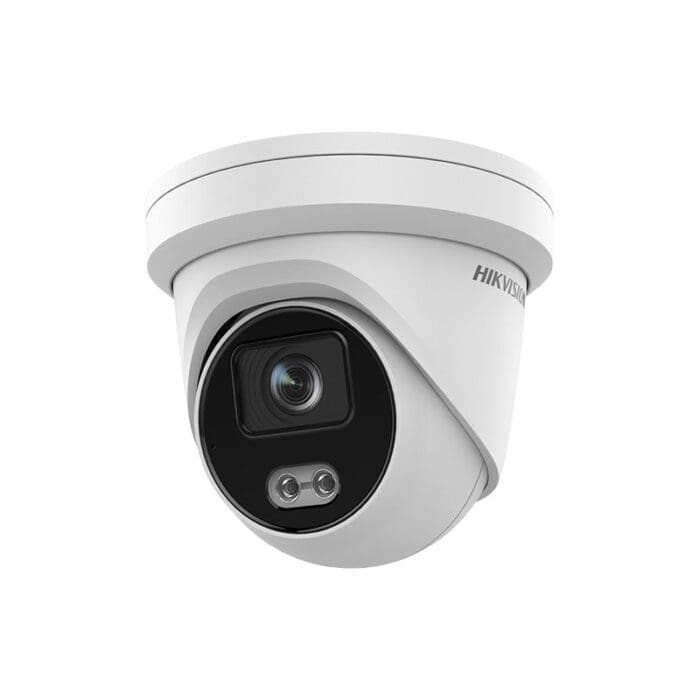

Quick Specs Figure 1 shows the appearance of DS-2CD2347G2-LU.
Table 1 shows the Quick Specs.
| Model | DS-2CD2347G2-LU |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688×1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0°to 360°, tilt: 0°to 75°, rotate: 0°to 360° |
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth Of Field | 2.8 mm, 2.5 m to∞4 mm, 3.5 m to∞6 mm, 7.5 m to∞ |
| DORI | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Supplement Light Type | White Light |
| Supplement Light Range | 30 m |
| Smart Supplement Light | Yes |
| Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720)60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Sub-Stream | 50 Hz: 25 fps (640×480, 640×360)60 Hz: 30 fps (640×480, 640×360) |
| Third Stream | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)*Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Stream Type | Main stream, Sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule |
| Wide Dynamic Range (WDR) | 130 dB |
| SNR | ≥52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Built-In Microphone | -U: Yes |
| Reset Key | Yes |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, Scene change detection |
| Linkage | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Face Capture | Yes |
| Power | 12 VDC±25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W |
| Dimension | Ø138.3 mm×125.2 mm (Ø5.4″×4.9″) |
| Package Dimension | 170 mm×170 mm×150 mm (7″×7″×5.9″) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages |
| Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| Power Consumption And Current | 12 VDC, 0.6 A, max. 7.2WPoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
