DS-2CD2563G0-IS
Model: DS-2CD2563G0-IS – Hikvision Network IP Cameras
Details: 6MP Max Resolution, H.265+ Codec, EXIR mini Dome, IP66, IK08 Protection, 2.8/4/6mm fixed lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2563G0-IS Overview

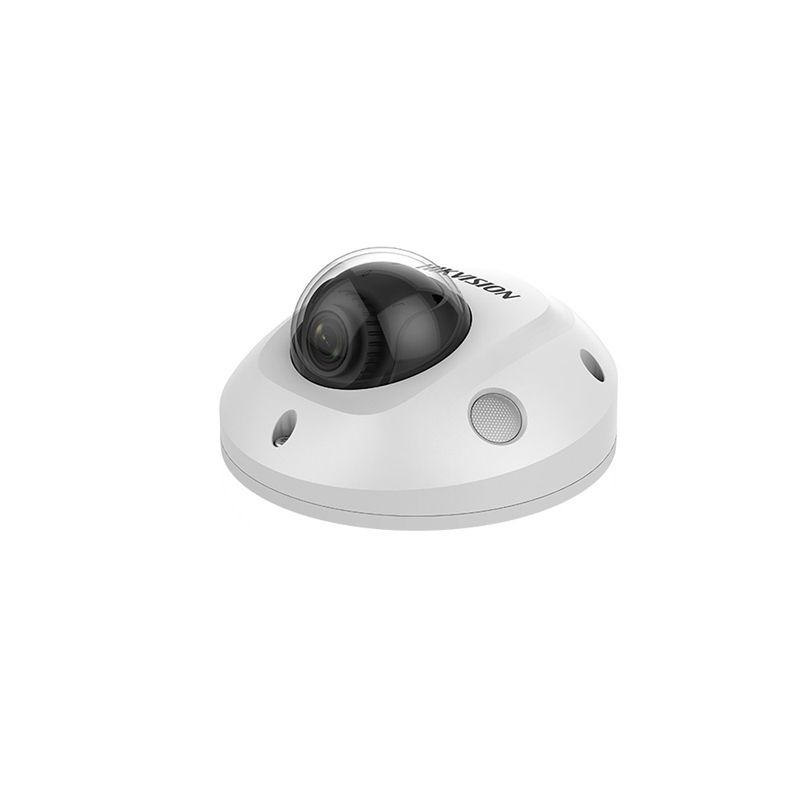

Quick Specs Figure 1 shows the appearance of DS-2CD2563G0-IS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Signal System | PAL/NTSC |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 67°, Diagonal field of view: 121°4 mm: Horizontal field of view: 78°, Vertical field of view: 53°, Diagonal field of view: 98°6 mm: Horizontal field of view: 60°, Vertical field of view: 41°, Diagonal field of view: 76° |
| Lens Mount | M12 |
| Adjustment Range | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile | Main Profile/High Profile |
| Video bit rate | 256Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Triple Streams | Yes |
| Max. Image Resolution | 3072 x 2048 |
| Frame Rate | 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| ROI | Support 1 fixed region for main stream and sub-stream separately |
| Day/Night Switch | Auto/Schedule/Day/Night/Triggered by Alarm In (-S model) |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Audio | with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Alarm | with -S model：1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption | 12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug powerPoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W |
| Impact Protection | IK08 Protection Level |
| Weather Proof | IP66 |
| IR Range | Up to 10m |
| Dimensions | Φ110 mm × 56.4 mm (Φ4.3″ × 2.2″) |
