DS-2CD3145G0-IS
Model: DS-2CD3145G0-IS – Hikvision Ultra (SmartIP) Network Cameras
Details: 4MP Powered by darkfighter Fixed Mini Dome Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2CD3145G0-IS Overview

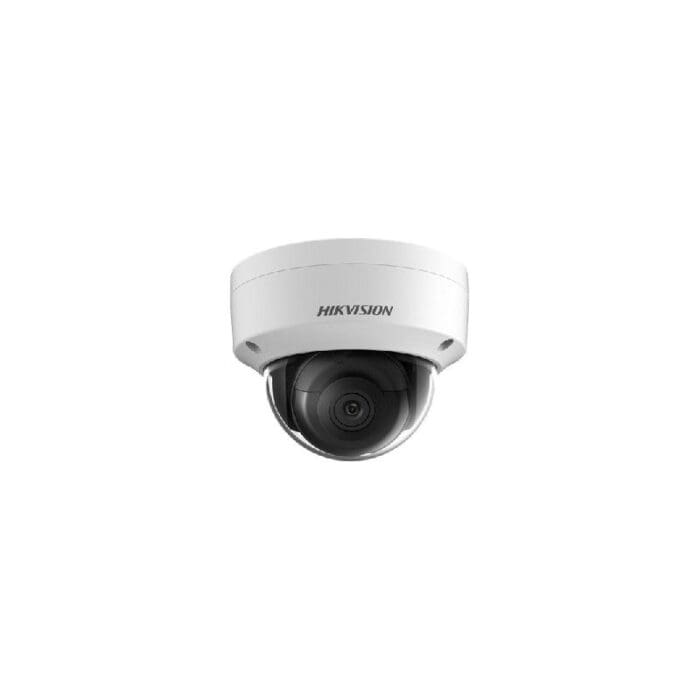

Quick Specs Figure 1 shows the appearance of DS-2CD3145G0-IS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max Resolution | 2688 �� 1520 |
| Min. Illumination | 0.008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens Type | 4mm Fixed Lens |
| Day & Night | IR Cut Filter with Auto Switch |
| IR Range | Up to 30 meters |
| Compression Standard | H.265+/H.265/H.264+/H.264 |
| Bitrate | 32 Kbps to 8 Mbps |
| Video Output | 1Vp-p composite output (75 ��/BNC) |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Input | 1-ch audio input (line in), RCA |
| Audio Output | 1-ch audio output (line out), RCA |
| Alarm Input | 1-ch alarm input |
| Alarm Output | 1-ch alarm output |
| Operating Conditions | -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC �� 10%, PoE (802.3af Class 3) |
| Power Consumption | Max. 4.5 W |
| Dimension | 111.7 mm �� 82.4 mm (4.4″ �� 3.2″) |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
