DS-2CD3685G1-IZS
Model: DS-2CD3685G1-IZS – Hikvision Ultra (SmartIP) Network Cameras
Details: 8MP Powered by darkfighter Moto Varifocal Bullet Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2CD3685G1-IZS Overview

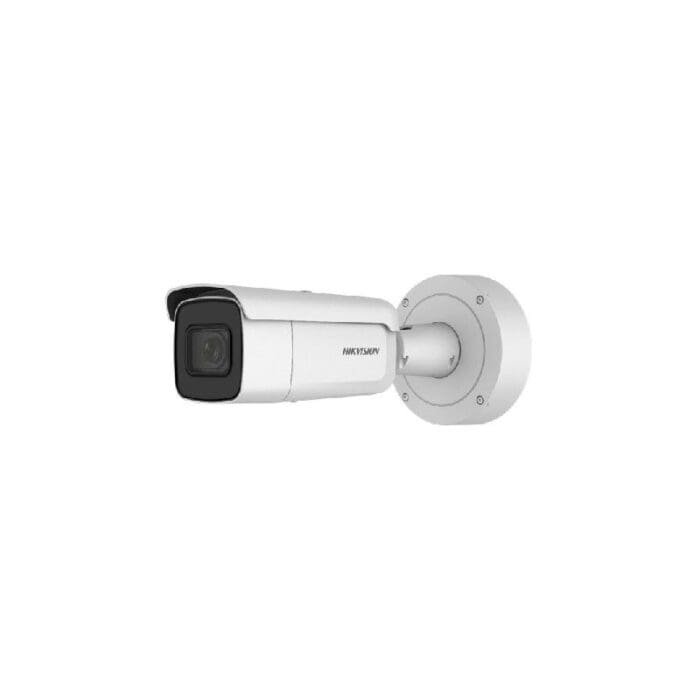

Quick Specs Figure 1 shows the appearance of DS-2CD3685G1-IZS.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Max Resolution | 8 MP (3840 �� 2160) |
| Lens | 2.8 to 12mm Motorized Varifocal Lens |
| Min. Illumination | 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Range | Up to 50m |
| Day & Night | IR Cut Filter with Auto Switch |
| Wide Dynamic Range | 120dB WDR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance |
| Noise Reduction | 3D DNR |
| Video Compression | H.265, H.265+, H.264, H.264+ |
| Frame Rate | Main Stream: Up to 20 fps @ 8 MP (3840 x 2160)Sub Stream: Up to 30 fps @ (704 �� 480) |
| Audio | 1 Audio input, 1 Audio output |
| Network Storage | NAS (NFS, SMB/CIFS) |
| Alarm Inputs/Outputs | 2 Alarm inputs, 2 Alarm outputs |
| Network Interface | 1 RJ45 10M/100M Ethernet Interface |
| On-board Storage | Built-in microSD/SDHC/SDXC card slot, up to 128 GB |
| Power Supply | 12 VDC �� 25%, PoE (802.3at, class 4) |
| Power Consumption | Max 12 W |
| Operating Conditions | -30 ��C to 60 ��C (-22 ��F to 140 ��F), humidity 95% or less (non-condensing) |
| Dimensions | 91 �� 105 �� 305 mm (3.58″ �� 4.13″ �� 12.01″) |
| Ingress Protection | IP67 |
