DS-2CD6984G0-IH(S)(AC)(/NFC)
Model: DS-2CD6984G0-IH(S)(AC)(/NFC) – Hikvision Panoramic Network Cameras
Details: 32 MP 180° PanoVu Network Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2CD6984G0-IH(S)(AC)(/NFC) Overview

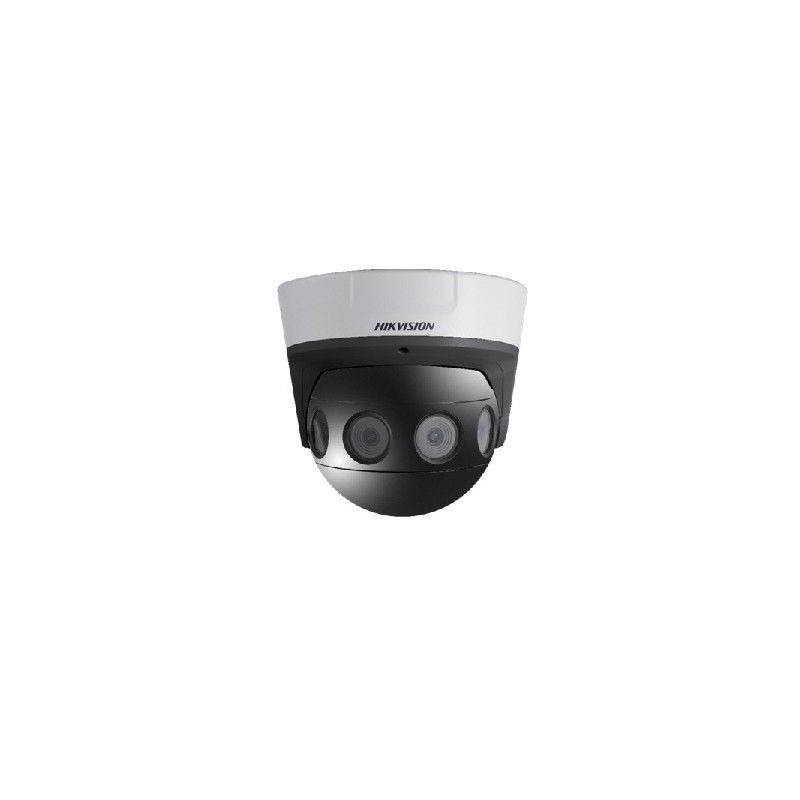

Quick Specs Figure 1 shows the appearance of DS-2CD6984G0-IH(S)(AC)(/NFC).
(AC)(_NFC)_1.png)
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2CD6984G0-IH(S)(AC)(/NFC) |
| Camera Type | 32 MP 180?? PanoVu Network Camera |
| Resolution | 32 MP (8160 ?? 3616) |
| Viewing Angle | Horizontal: 180??, Vertical: 85?? |
| Lens | 4 mm fixed-focal lens |
| Minimum Illumination | 0.02 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| IR Range | Up to 30 m |
| Compression Standard | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Network Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1X, QoS, IPv6, UDP,Bonjour |
| Frame Rate | 25 fps (8160 ?? 3616) |
| Day/Night | IR cut filter with auto switch |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Input | 1-ch, 3.5 mm audio in interface, Mic in/Line in |
| Audio Output | 1-ch, 3.5 mm audio out interface |
| Alarm Input | 2-ch |
| Alarm Output | 2-ch |
| Operating Conditions | -30 ??C to 60 ??C (-22 ??F to 140 ??F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ?? 25%, 50/60 Hz, PoE (802.3bt, class 4) |
| Power Consumption | 24 W |
| Dimensions | 325 mm ?? 125 mm ?? 242 mm (12.8″ ?? 4.9″ ?? 9.5″) |
