DS-2CE56C5T-VFIT3
Model: DS-2CE56C5T-VFIT3 – Hikvision Turbo HD Cameras
Details: C5T_TVI_720p: 2-in-1 (TVI + CVBS), 1/3 CMOS, EXIR, 3D DNR, DWDR, Motion Detection, Private Mask, Auto White Balance, IP66 protection, 2.8~12mm Lens, ICR + 50m IR Distance + 1 pc EXIR LED, 12VDC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CE56C5T-VFIT3 Overview

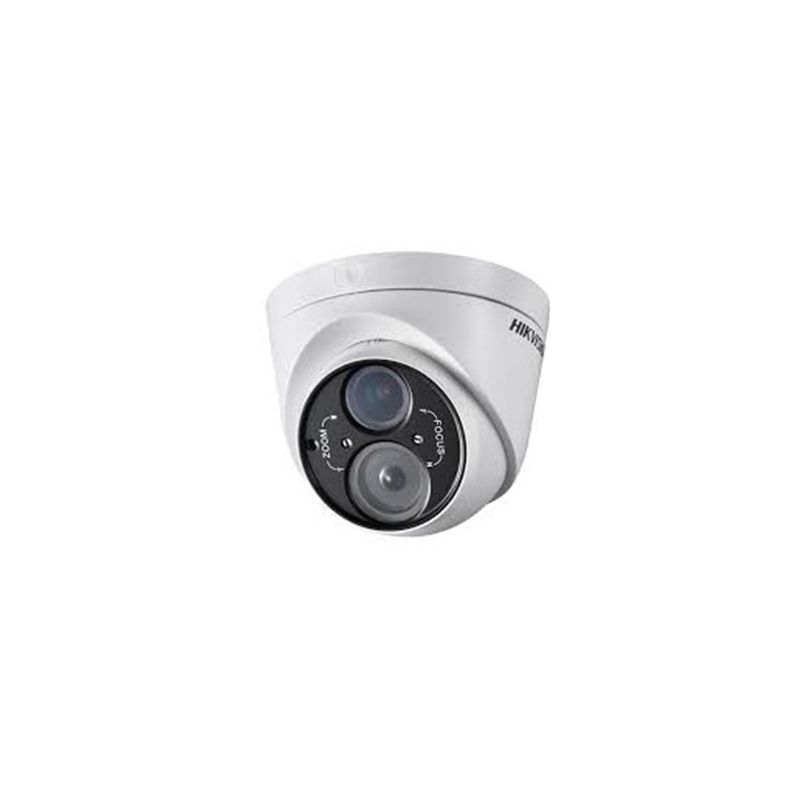

Quick Specs Figure 1 shows the appearance of DS-2CE56C5T-VFIT3.
Table 1 shows the Quick Specs.
| Image Sensor | 1.27MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1305(H)x977(V) |
| Min. Illumination | 0.001 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8-12mm @ F1.4Angle of view: 92° – 29.3° |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Automatic Exposure | Globe AE/DWDR |
| Auto Gain | Low/Middle/High/Off |
| D/N Mode | Color/ BW/ EXT |
| Auto White Balance | Auto / Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| Language | English/Chinese |
| Function | Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 6.5W |
| Weather Proof | IP66 |
| IR Range | Up to 50m |
| Communication | Up the coax |
| Dimension | φ130.54 × 93.24 mm (φ5.14” × 3. 67”) |
