-5%
DS-2DE1A200IW-DE3
Model: DS-2DE1A200IW-DE3 – Hikvision DE-line Network PTZ
Details: 2MP Max Resolution, Optical: – + Digital: 16X zoom, Pan: 0°-330° + Tilt: 0°-90°, IP66, IK08 Protection, 2.8/4mm Fixed lens + F1.6, 120dB WDR, 15m, IR, DC12V & PoE power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2DE1A200IW-DE3 Overview

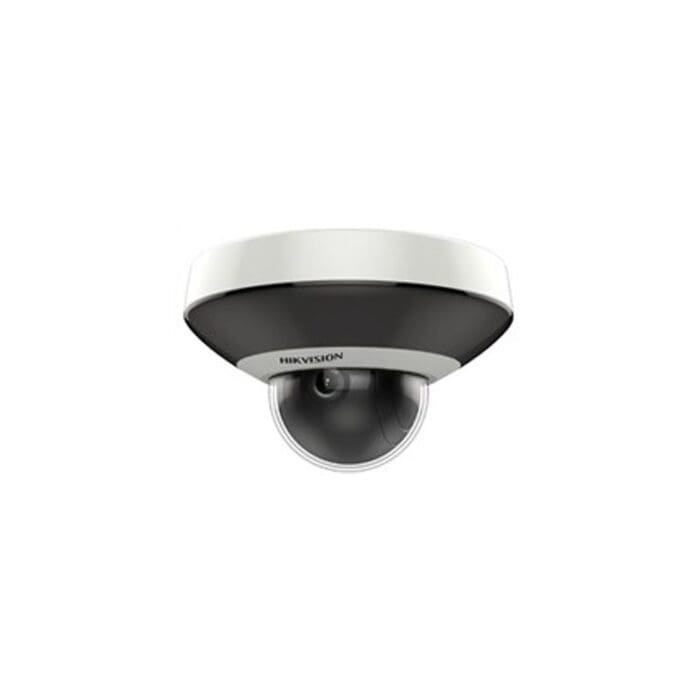

Quick Specs Figure 1 shows the appearance of DS-2DE1A200IW-DE3.
Table 1 shows the Quick Specs.
| Model | DS-2DE1A200IW-DE3 |
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| WDR | 120 dB WDR |
| FOV | 2.8 mm: horizontal FOV 103.8°; vertical FOV 57.6°, diagonal FOV 123°,4mm: horizontal FOV 82.5°; vertical FOV 44.5°, diagonal FOV 97.7° |
| Working Distance | 2.8 mm: > 0.7 m; 4 mm: > 1 m |
| Aperture Range | F1.6 |
| Focal length | 2.8 mm, 4 mm, optional |
| Image Enhancement | HLC, BLC, 3D DNR, EIS, Regional Exposure, Regional Focus |
| Sub Stream | 50Hz: 25fps (704×576, 640×480, 352×288),60Hz: 30fps (704×480, 640×480, 352×240) |
| Max. Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps (1920×1080, 1280×960,1280×720),60Hz: 30fps (1920×1080, 1280×960, 1280×720) |
| Third Stream | 50Hz: 25fps (1280×720, 704×576, 640×480, 352×288),60Hz: 30fps (1280×720, 704×480, 640×480, 352×240) |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Alarm Linkage | Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Audio Input | 1-ch audio input (line in) |
| Audio Output | 1-ch audio output (line out) |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| Power | 12 VDC, 1.0 A (Max. 12 W)PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12 W)Including max. 3.6W for IR |
| Camera Dimension | Φ124.3 mm×76.9 mm (Φ4.89″×3.03″) |
