DS-2DF6223-CX(W316L)
Model: DS-2DF6223-CX(W316L) – Hikvision Explosion-Proof Network Cameras
Details: 6-inch 23x Explosion-proof Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2DF6223-CX(W316L) Overview

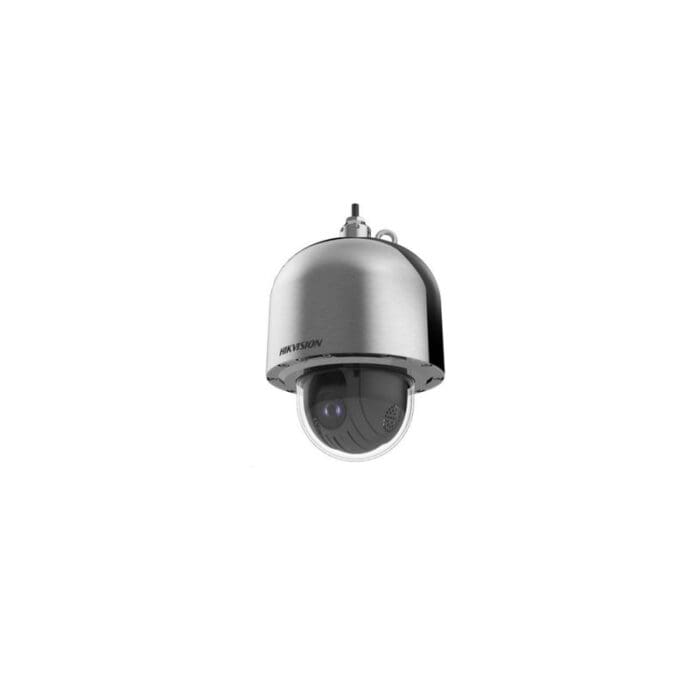

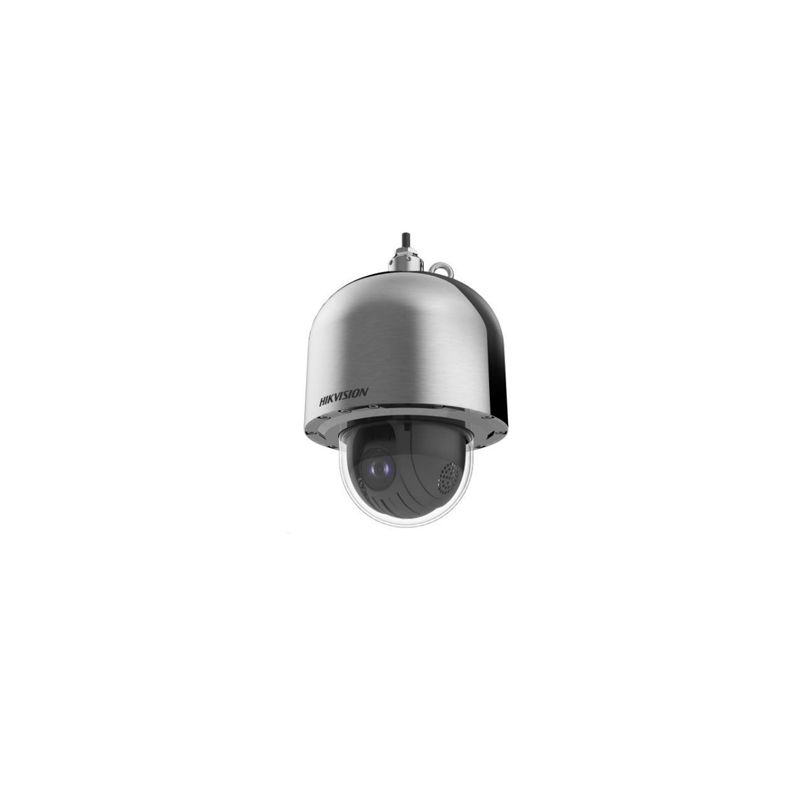

Quick Specs Figure 1 shows the appearance of DS-2DF6223-CX(W316L).
_1.png)
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2DF6223-CX(W316L) |
| Type | Explosion-proof Network Speed Dome |
| Camera Type | 6-inch 23x Zoom |
| Image Sensor | 1/1.9″ Progressive Scan CMOS |
| Max Resolution | 1920 ?? 1080 |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON) |
| Day & Night | ICR |
| Lens | 5.9-135.7 mm, 23x Optical Zoom |
| Horizontal Field of View | 59.8??-3.0?? |
| Pan Range | 360?? Continuous |
| Tilt Range | -20?? to 90?? (Auto Flip) |
| Pan Speed | Configurable, From 0.1??/s to 210??/s |
| Tilt Speed | Configurable, From 0.1??/s to 150??/s |
| Video Compression | H.264 / MJPEG |
| Audio Compression | G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 |
| Audio In/Out | 1-ch audio in / 1-ch audio out |
| Alarm Input/Output | 7-ch alarm input / 2-ch alarm output |
| Network Interface | 1 RJ45 10M/100M Ethernet interface |
| Storage | MicroSD/SDHC/SDXC card slot, up to 128GB |
| Ingress Protection | IP68 |
| Explosion-proof Standard | IECEx, ATEX |
