DS-2DF8242I5X-AELW(T3)
Model: DS-2DF8242I5X-AELW(T3) – Hikvision Ultra PTZ
Details: 8-inch 2 MP 42X DarkFighter Laser Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2DF8242I5X-AELW(T3) Overview

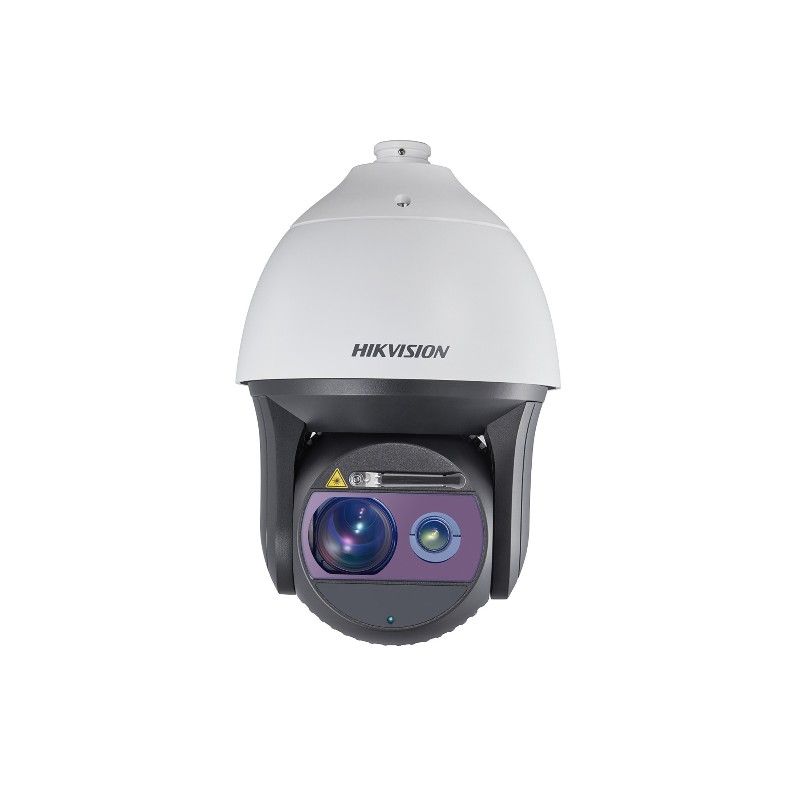

Quick Specs Figure 1 shows the appearance of DS-2DF8242I5X-AELW(T3).
_1.png)
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2DF8242I5X-AELW(T3) |
| Camera Type | Network Speed Dome |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Effective Pixels | 2 MP (1920 x 1080) |
| Minimum Illumination | Color: 0.002 Lux; B/W: 0.0002 Lux; 0 Lux with IR |
| Laser Distance | Up to 500 m |
| Zoom Ratio | 42X Optical Zoom |
| Lens | 5.8-240 mm |
| Field of View | 58.6?? to 1.6?? (Wide-Tele) |
| Max. Aperture | F1.5 – F4.0 |
| S/N Ratio | More than 55 dB |
| Shutter Speed | 1/1 to 1/30,000s |
| Day/Night Mode | Auto/Color/BW |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Audio Input | 1 Mic In/Line In interface, 2.0 to 2.4 V[p-p], 1k????10% |
| Audio Output | 1-ch (LINE OUT), 2.0 to 2.4 V[p-p], 300?? (shared with Dual-purpose LINE IN/LINE OUT Audio Interface) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SMTP, UPnP, SNMP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, NTP, DNS, QoS, FTP, etc. |
| Operating Conditions | -30??C to 65??C (-22??F to 149??F), Humidity 90% or less (non-condensing) |
| Power Supply | 24 VAC; Hi-PoE |
| Power Consumption | Max. 60 W with IR and Heater on |
| Protection Level | IP67, IK10 |
