DS-2DF8A436IX-AEL
Model: DS-2DF8A436IX-AEL – Hikvision Ultra PTZ
Details: 8-inch 4MP 36X DarkFighter IR Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2DF8A436IX-AEL Overview

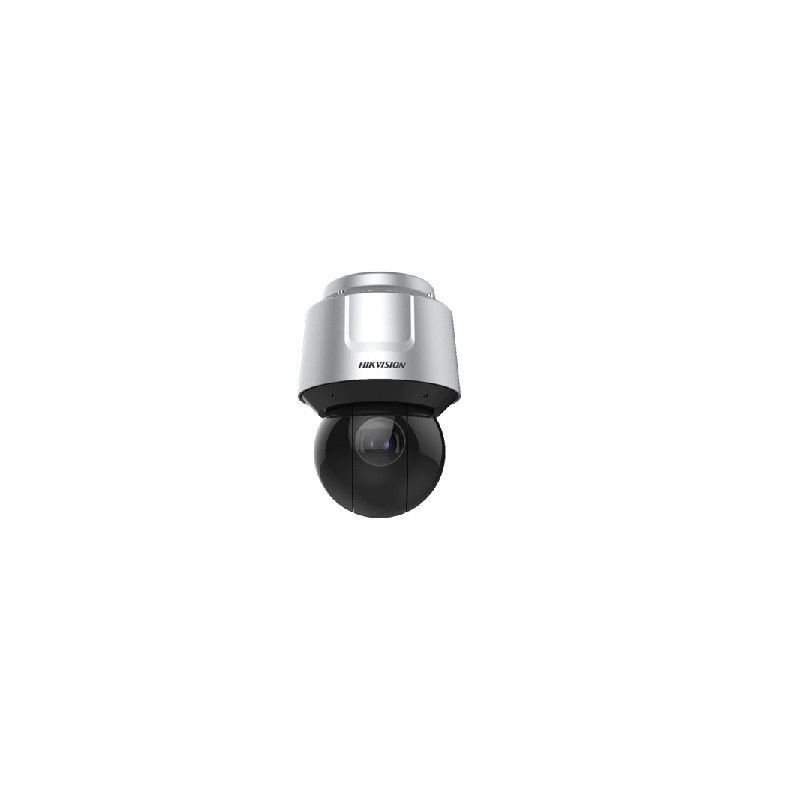

Quick Specs Figure 1 shows the appearance of DS-2DF8A436IX-AEL.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 4MP (2560 x 1440) |
| Min. Illumination | Color: 0.002 Lux, B/W: 0 Lux with IR |
| Zoom Ratio | 36X Optical |
| IR Distance | Up to 200 meters |
| Lens | 5.7-205.2 mm |
| Angle of View | H: 61.4�� – 2.0�� |
| Max. Aperture | F1.5 |
| Pan Range | 360�� Endless |
| Tilt Range | -20�� to 90�� |
| Day/Night Mode | Auto / Scheduled |
| WDR | 120 dB |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Frame Rate | 30fps @ 4MP |
| Network | RJ45 10BASE-T/100BASE-TX |
| Audio In/Out | 1/1 |
| Alarm In/Out | 7/2 |
| Operating Temperature | -40��C to 65��C (-40��F to 149��F) |
| Humidity | Up to 95% non-condensing |
| Power Supply | 24 VAC & Hi-PoE |
| Power Consumption | Max. 65W |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
