Sold out
DS-2DY9236I8X-A
Model: DS-2DY9236I8X-A – Hikvision Special PTZ
Details: 9-inch 2 MP 36X DarkFighter Laser Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2DY9236I8X-A Overview

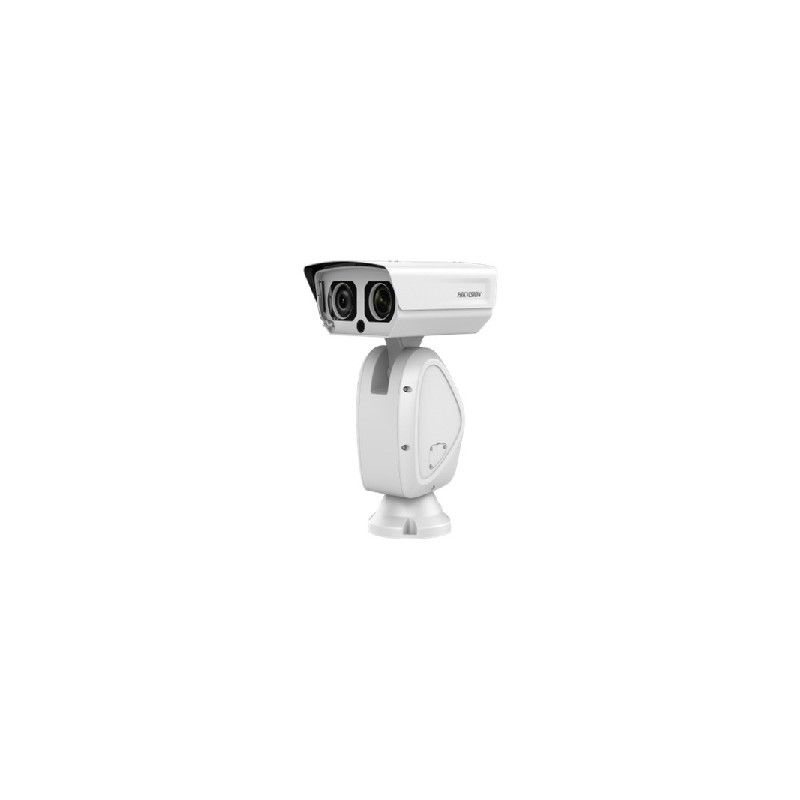

Quick Specs Figure 1 shows the appearance of DS-2DY9236I8X-A.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2DY9236I8X-A |
| Camera Type | DarkFighter Laser Network Positioning System |
| Image Sensor | 2 MP 1/1.8?? Progressive Scan CMOS |
| Lens | 36X Optical Zoom, 5.7?C205.2 mm |
| Zoom Speed | Approx. 7.2 s (optical, wide-tele) |
| Minimum Illumination | Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0005 Lux @ (F1.5, AGC ON) |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Focus | Auto/Manual/Semi-Auto |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720) |
| Region of Interest | Up to 8 areas |
| Audio Input | 1 Mic/Line Input, 2 to 2.4 Vpp, 1 k?? |
| Audio Output | 1 Audio Output, Line Level, Impedance: 600 ?? |
| Alarm Inputs | 7 |
| Alarm Outputs | 2 |
| IR Distance | Up to 800 m |
| Ethernet | RJ45, 10M/100M Self-Adaptive Ethernet Port |
| Power Supply | 24 VAC; Hi-PoE |
| Operating Conditions | -40??C to 65??C (-40??F to 149??F), Humidity 95% or less (non-condensing) |
