Description

DS-2PT3122IZ Overview

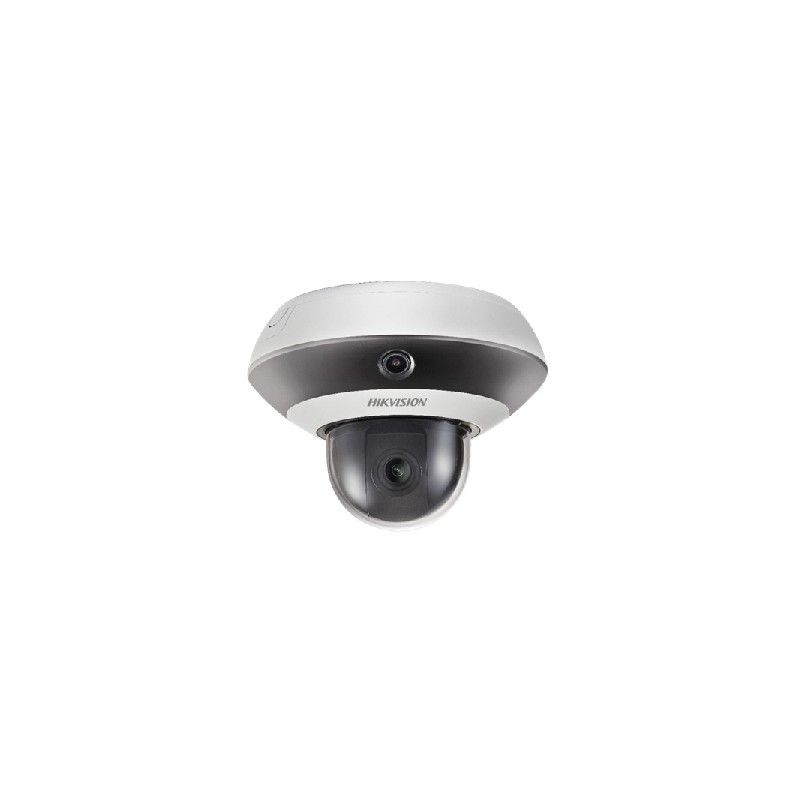

Quick Specs Figure 1 shows the appearance of DS-2PT3122IZ.

Table 1 shows the Quick Specs.

Brand Hikvision
Model PT3 Mini PanoVu DS-2PT3122IZ
Type PanoVu Camera
Sensor Type 1/2.8″ Progressive Scan CMOS
Resolution 1920 x 1080
Minimum Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Lens 2.8 �C 12 mm Motorized Lens
Field of View Horizontal: 112.7�� to 30.1��, Vertical: 61.3�� to 16.9��
IR Range Up to 20m
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM
Frame Rate Main Stream: 50Hz: 25fps (1920 �� 1080, 1280 �� 720), 60Hz: 30fps (1920 �� 1080, 1280 �� 720)
Image Enhancement BLC, 3D DNR, HLC, Defog
Day/Night Mode IR Cut Filter with Auto Switch
Pan/Tilt Range Pan: 0�� to 330��, Tilt: -5�� to 90��
Pan/Tilt Speed Pan Speed: Up to 100��/s, Tilt Speed: Up to 30��/s
Network Interface 1 RJ45 10M/100M Ethernet Interface
Power Supply 12V DC �� 10%, PoE (802.3af)
Power Consumption Max. 10W
Operating Conditions -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing)
