DS-2TD2136T-10
Model: DS-2TD2136T-10 – Hikvision Thermography Thermal Cameras
Details: Thermographic Network Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD2136T-10 Overview

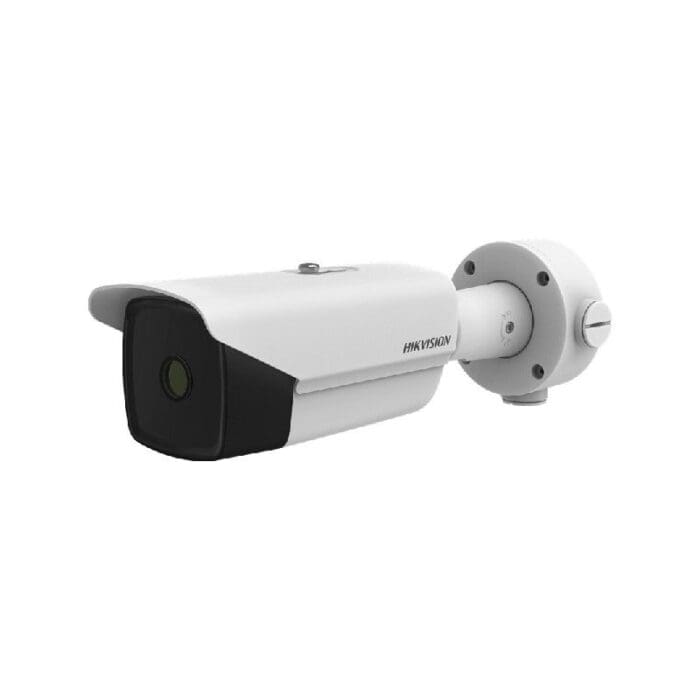

Quick Specs Figure 1 shows the appearance of DS-2TD2136T-10.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model Name | DS-2TD2136T-10 |
| Product Type | Thermographic Network Bullet Camera |
| Detector Type | Uncooled Focal Plane Arrays |
| Resolution | 384 x 288 |
| Pixel Pitch | 17 ��m |
| NETD | < 40 mK |
| Lens (Thermal) | 10 mm |
| Spectral Range | 8~14 ��m |
| Image Mode | White Hot/Black Hot |
| Frame Rate | 25 Hz |
| Compression | H.264/MJPEG |
| Storage | Micro SD/SDHC/SDXC card slot, up to 128 GB |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Max. 8 W |
| Operating Temperature | -20��C to 60��C (-4��F to 140��F) |
| Humidity | 95% or less (non-condensing) |
| Ingress Protection | IP66 |
| Dimensions | 300 mm �� 112 mm �� 104 mm (11.8″ �� 4.4″ �� 4.1″) |
| IR Range | Up to 50 meters |
| Alarm | Temperature Exception Alarm, Line Crossing/Intrusion Detection |
