Sold out
DS-2TD2166T-15
Model: DS-2TD2166T-15 – Hikvision Thermography Thermal Cameras
Details: Thermographic Network Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD2166T-15 Overview

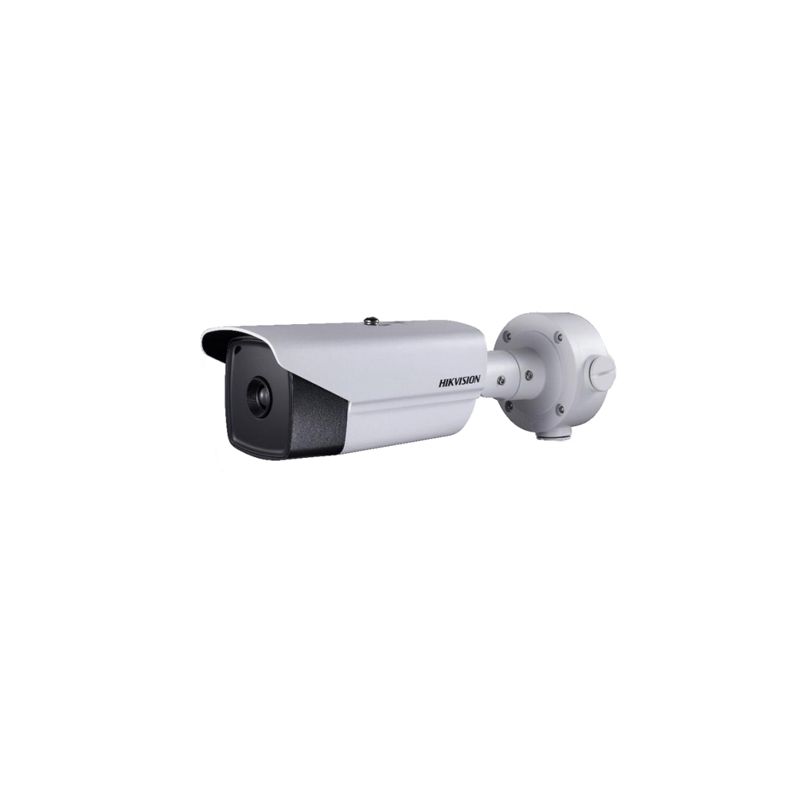

Quick Specs Figure 1 shows the appearance of DS-2TD2166T-15.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD2166T-15 |
| Product Type | Thermographic Network Bullet Camera |
| Imaging Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 �� 512 |
| Pixel Pitch | 17��m |
| Spectral Range | 8��m to 14��m |
| Lens (Thermal) | 15mm |
| Field of View (Thermal) | 40.6�� �� 32.5�� |
| Minimum Focusing Distance | 1.5m |
| Digital Zoom | 2x, 4x, 8x |
| Image Enhancement | 3D DNR, AGC, DDE |
| Video Compression | H.264/MJPEG |
| Network Protocols | TCP/IP, HTTP, HTTPS, NTP, RTSP, RTP, UDP, SMTP |
| Storage | NAS (NFS, SMB/CIFS), ANR |
| Operating Temperature | -40��C to 60��C (-40��F to 140��F) |
| Humidity | 95% or less (non-condensing) |
| Power Supply | 12 VDC �� 20%, PoE (802.3af) |
| Power Consumption | Max 8W (With IR and Heater off) |
| Ingress Protection | IP66 |
| Dimensions | 462 �� 151 �� 161mm (18.19�� �� 5.94�� �� 6.34��) |
Get more information
Do you have any question about the DS-2TD2166T-15?
Contact us now via Live Chat or sales@metafinitivetech.com
