DS-2TD2466T-25X
Model: DS-2TD2466T-25X – Hikvision Thermography Thermal Cameras
Details: Explosion-Proof Thermographic Network Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD2466T-25X Overview

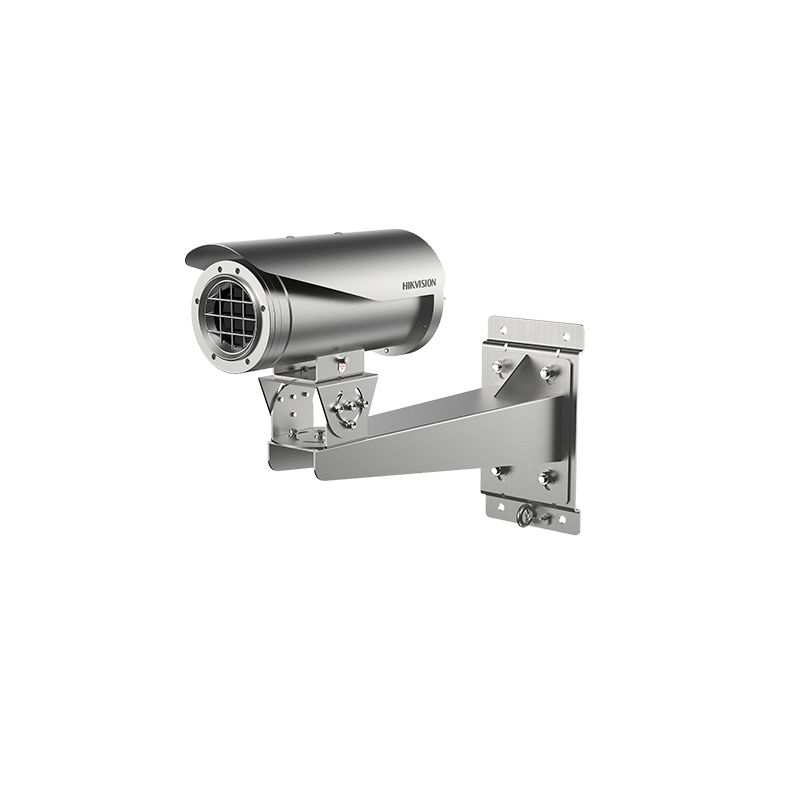

Quick Specs Figure 1 shows the appearance of DS-2TD2466T-25X.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD2466T-25X |
| Type | Explosion-Proof Thermographic Network Bullet Camera |
| Image Sensor | Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17 ��m |
| Lens (Thermal) | 25 mm |
| Field of View (Thermal) | 25�� �� 19�� |
| Min. Focusing Distance | 4.0 m |
| Temperature Measurement Range | -20��C to 550��C |
| Accuracy | ��2��C or ��2% |
| Video Compression | H.265/H.264/MJPEG |
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Protocols | TCP/IP, ICMP, HTTP, FTP |
| Power Supply | 12 VDC/24 VAC/PoE (802.3af) |
| Power Consumption | Max. 12 W |
| Protection Level | IP68 |
| Explosion Protection | Ex d IIC T6 Gb |
| Operating Temperature | -40��C to 60��C |
| Dimensions | 416 mm �� 189 mm �� 152 mm |
