DS-2TD2617B-3/PA
Model: DS-2TD2617B-3/PA – Hikvision Temperature Measurement Camera
Details: Temperature Screening Thermographic Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2TD2617B-3/PA Overview

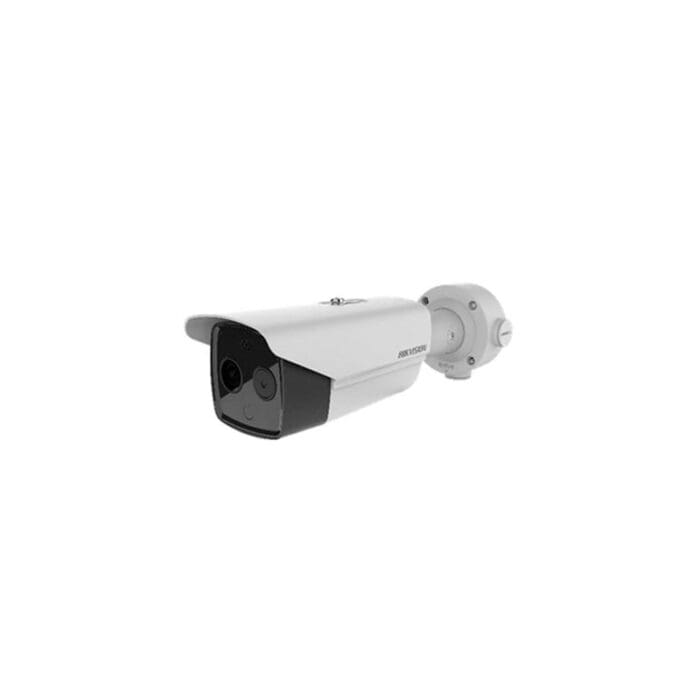

Quick Specs Figure 1 shows the appearance of DS-2TD2617B-3/PA.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD2617B-3/PA |
| Camera Type | Thermographic Bullet Camera |
| Temperature Measurement Range | 30��C to 45��C (86��F to 113��F) |
| Temperature Accuracy | ��0.5��C (��0.9��F) |
| Sensor Type | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 160 �� 120 |
| Pixel Pitch | 17��m |
| Lens | 3mm |
| FOV (Field of View) | 50�� �� 37.2�� |
| Image Enhancement | 3D DNR, DDE, AGC |
| Display Mode | Bi-spectrum image fusion, Picture-in-picture |
| Temperature Alarm | Yes |
| Measurement Interval | 2s |
| Power Supply | 12 V DC/PoE (802.3af, class 3) |
| Power Consumption | Max 12W |
| Operating Conditions | -10��C to 50��C (14��F to 122��F) |
| Storage Conditions | -20��C to 60��C (-4��F to 140��F) |
| Ingress Protection | IP67 |
| Housing Material | Metal |
| Dimensions | 246.1mm �� 111mm �� 105/m |
