-5%
DS-2TD2617B-6/PA
Model: DS-2TD2617B-6/PA – Hikvision Thermography Thermal Cameras
Details: Temperature Screening Thermographic Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2TD2617B-6/PA Overview

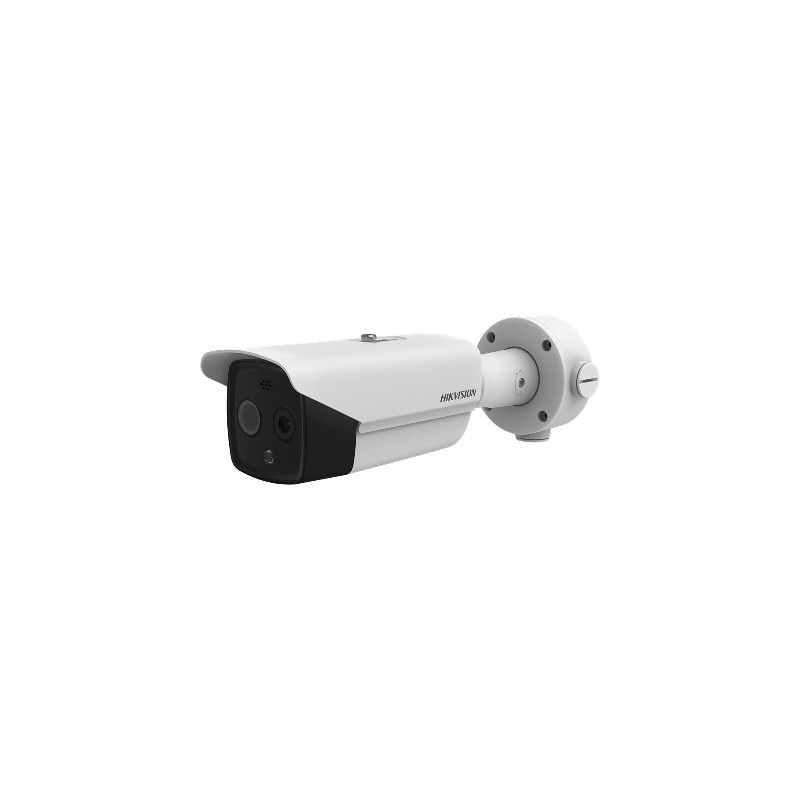

Quick Specs Figure 1 shows the appearance of DS-2TD2617B-6/PA.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD2617B-6/PA |
| Product Type | Temperature Screening Thermographic Bullet Camera |
| Sensor Resolution | 160 �� 120 |
| Thermal Sensitivity | ��40 mK |
| Temperature Measurement Range | 30��C to 45��C (86��F to 113��F) |
| Temperature Measurement Accuracy | ��0.5��C (��0.9��F) |
| Lens (Thermal) | 6 mm/2.4 inches |
| Field of View (Thermal) | 25�� �� 18.7�� |
| Image Sensor (Visible Light) | 1/2.7″ Progressive Scan CMOS |
| Effective Pixels (Visible Light) | 2688 �� 1520 |
| Lens (Visible Light) | 4 mm/0.16 inches |
| Field of View (Visible Light) | 84.5�� �� 44.2�� |
| Min. Illumination (Visible Light) | 0.0089 Lux @ (F1.6, AGC ON) |
| Networking Interface | RJ-45 Ethernet 10/100 Base-T |
| Video Compression Standards | H.265/H.264/MJPEG |
| Power Supply | 12 VDC �� 20%, PoE (802.3af) |
| Power Consumption | Max. 11 W |
| Operating Conditions | -20��C to 50��C (-4��F to 122��F) |
| Ingress Protection | IP66 |
