DS-2TD2636B-10/P
Model: DS-2TD2636B-10/P – Hikvision Thermography Thermal Cameras
Details: Temperature Screening Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD2636B-10/P Overview

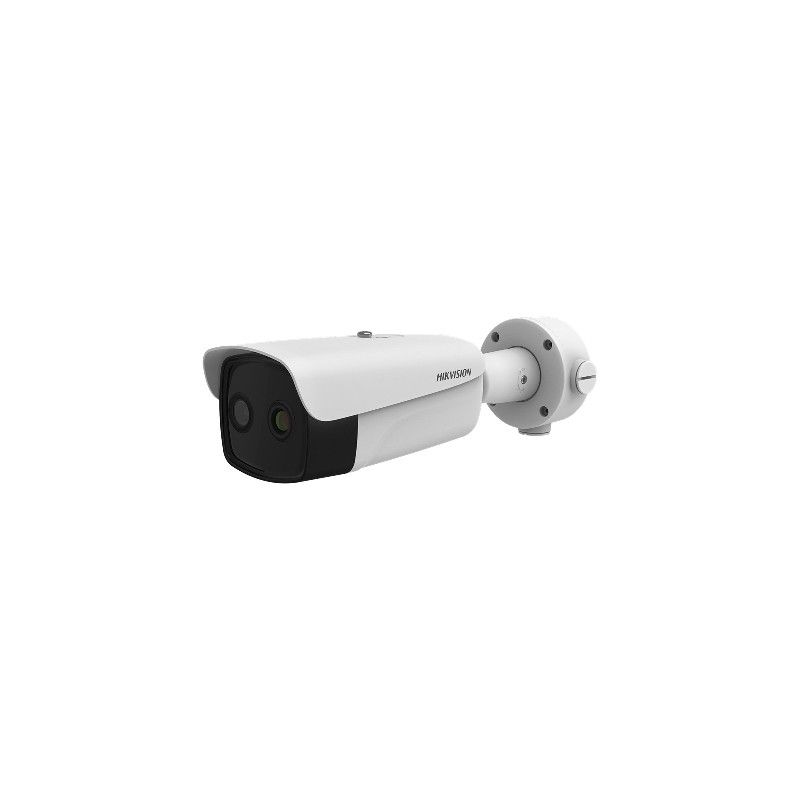

Quick Specs Figure 1 shows the appearance of DS-2TD2636B-10/P.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD2636B-10/P |
| Camera Type | Thermographic Thermal & Optical Bi-spectrum Network Bullet Camera |
| Temperature Range | 30��C to 45��C (86��F to 113��F) |
| Temperature Accuracy | ��0.5��C (��0.9��F) |
| IR Resolution | 384 x 288 |
| Optical Resolution | 1920 x 1080 |
| Lens (Thermal) | 10mm |
| Lens (Optical) | 6mm |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Frame Rate | 25 fps |
| Field of View (Thermal) | 37.5�� �� 28.5�� |
| Field of View (Optical) | 50�� x 37.2�� |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power Supply | 12 V DC/2 A, PoE (802.3af) |
| Power Consumption | Max. 25 W |
| Ingress Protection | IP66 |
| Operating Temperature | -20��C to 60��C (-4��F to 140��F) |
| Storage Temperature | -40��C to 70��C (-40��F to 158��F) |
| Dimensions | 306.1 mm �� 104.2 mm �� 99.3 mm |
| Certifications | CE, FCC, cUL, BIS |
