DS-2TD4136-25/V2
Model: DS-2TD4136-25/V2 – Hikvision Security Thermal Cameras
Details: Thermal & Optical Bi-spectrum Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD4136-25/V2 Overview

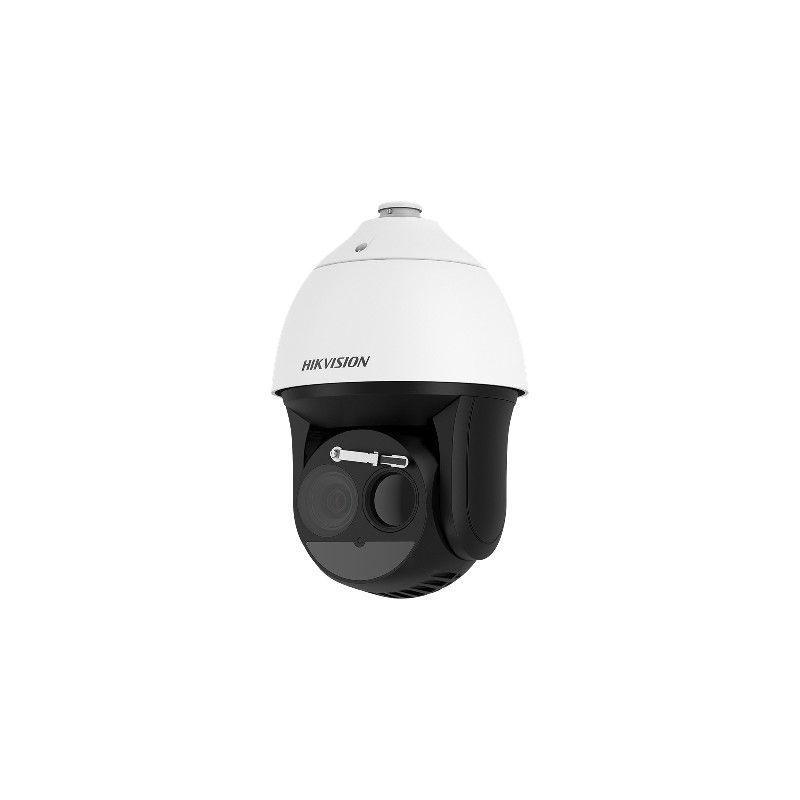

Quick Specs Figure 1 shows the appearance of DS-2TD4136-25/V2.
Table 1 shows the Quick Specs.
| Camera Type | Thermal & Optical Bi-spectrum Network Speed Dome |
| Brand | Hikvision |
| Thermal Resolution | 384 �� 288 |
| Optical Resolution | 1920 �� 1080 |
| Lens (Thermal) | 25 mm |
| Lens (Optical) | 4.3-170 mm |
| Digital Zoom | 16�� |
| Human Detection Range (Thermal) | 1,360 meters |
| Vehicle Detection Range (Thermal) | 3,360 meters |
| Ingress Protection | IP66 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 25 fps (optical), 25 Hz (thermal) |
| WDR (Wide Dynamic Range) | 120 dB |
| Operating Temperature | -40��C to 65��C (-40��F to 149��F) |
| Power Supply | 24 VAC, Hi-PoE |
| Power Consumption | Max. 65W |
| Alarm Inputs | 7 |
| Alarm Outputs | 2 |
| Audio Inputs | 1 |
| Audio Outputs | 1 |
| Dimensions | 359.8 mm �� 190.4 mm �� 262.8 mm |
| Weight (excluding) | 5.5 kg |
