DS-2TD4166T-25
Model: DS-2TD4166T-25 – Hikvision Thermography Thermal Cameras
Details: Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD4166T-25 Overview

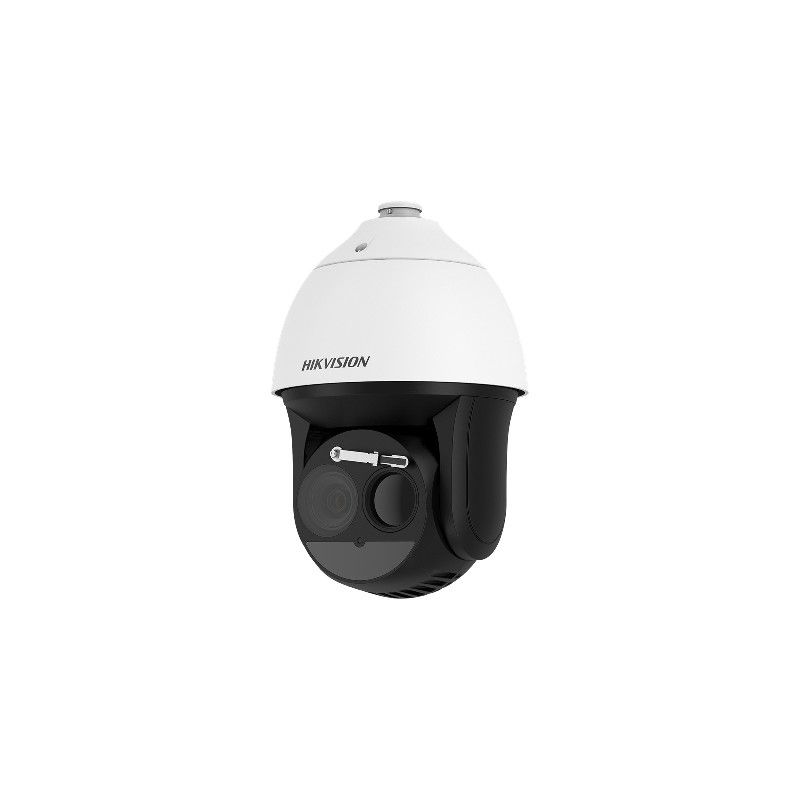

Quick Specs Figure 1 shows the appearance of DS-2TD4166T-25.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD4166T-25 |
| Type | Thermographic Thermal & Optical Bi-spectrum Network Speed Dome |
| Resolution | 640 �� 512 (Thermal); 1920 �� 1080 (Optical) |
| Lens | 25 mm (Thermal); 4.3-170 mm (Optical) |
| Image Sensor | Uncooled Focal Plane Arrays (Thermal); 2 MP CMOS (Optical) |
| Pixel Pitch | 17 ��m |
| Temperature Range | -20��C to 550��C |
| Measurement Accuracy | ��2��C or ��2% |
| Detection Range | Up to 1,050 meters (for a human target) |
| Video Compression | H.265/H.264/MJPEG |
| Frame Rate | 25 FPS (Thermal); 30 FPS (Optical) |
| Alarm | Motion detection, Temperature exception alarms |
| Pan Range | 360�� endless |
| Tilt Range | -20�� to 90�� |
| Ingress Protection | IP66 |
| Power Supply | 24 VAC, 3.5 A |
| Power Consumption | Max. 70 W (Heater on) |
| Operating Temperature | -40��C to 60��C |
| Dimensions | 375 �� 275 �� 470 mm |
| Image Enhancement | 3D DNR, Defog, EIS |
| Storage | Built-in microSD/SDHC/SDXC card slot, up to 256 GB |
