Sold out
DS-2TD6266-50H2L/V2
Model: DS-2TD6266-50H2L/V2 – Hikvision Security Thermal Cameras
Details: Thermal & Optical Bi-spectrum Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD6266-50H2L/V2 Overview

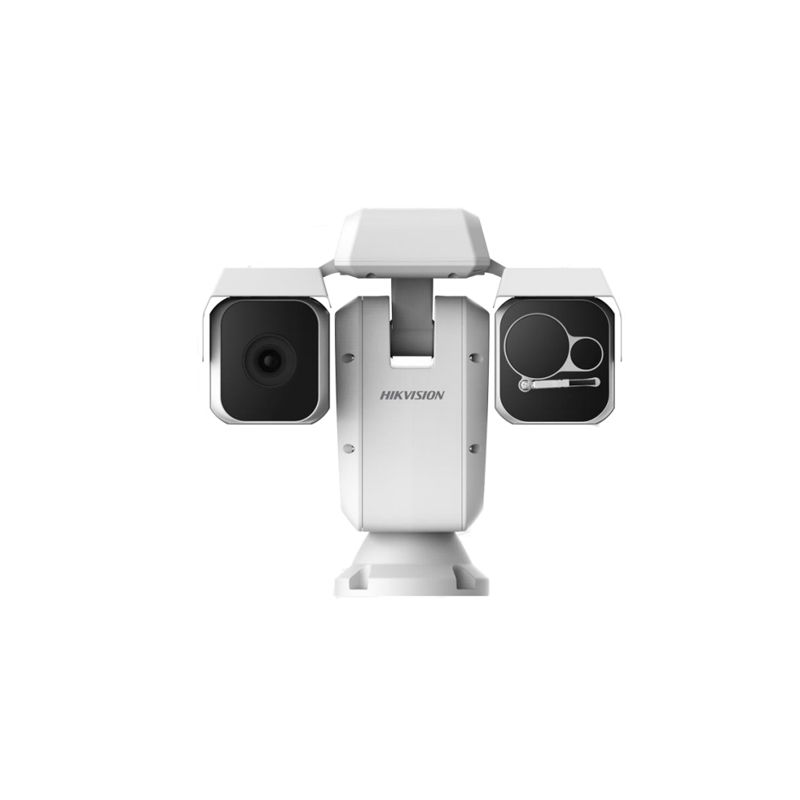

Quick Specs Figure 1 shows the appearance of DS-2TD6266-50H2L/V2.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD6266-50H2L/V2 |
| System Type | Thermal & Optical Bi-spectrum Network Positioning System |
| Thermal Sensor | Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Pitch | 17 ��m |
| NETD | Less than 40 mK (@25��C, F#=1.0) |
| Lens (Thermal) | 50 mm |
| Optical Sensor | 1/1.8�� Progressive Scan CMOS |
| Optical Resolution | 1920 x 1080 |
| Optical Zoom | 40x |
| Lens (Optical) | 5.7 – 228 mm |
| Field of View (Thermal) | 12.42�� x 10.0�� |
| Field of View (Optical) | 63.9�� to 1.95�� |
| Digital Zoom | 16x |
| Video Compression | H.265, H.264, MJPEG |
| Image Enhancement | 3D DNR, EIS, BLC |
| Storage | MicroSD, up to 256 GB |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, NTP, etc. |
| Alarm Inputs/Outputs | 2/2 |
| Power Supply | 24 VAC/24-36 VDC |
| Operating Conditions | -40��C to 65��C (-40��F to 149��F) |
Get more information
Do you have any question about the DS-2TD6266-50H2L/V2?
Contact us now via Live Chat or sales@metafinitivetech.com
