DS-2TD6266-75C2L/V2
Model: DS-2TD6266-75C2L/V2 – Hikvision Security Thermal Cameras
Details: Thermal & Optical Bi-spectrum Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD6266-75C2L/V2 Overview

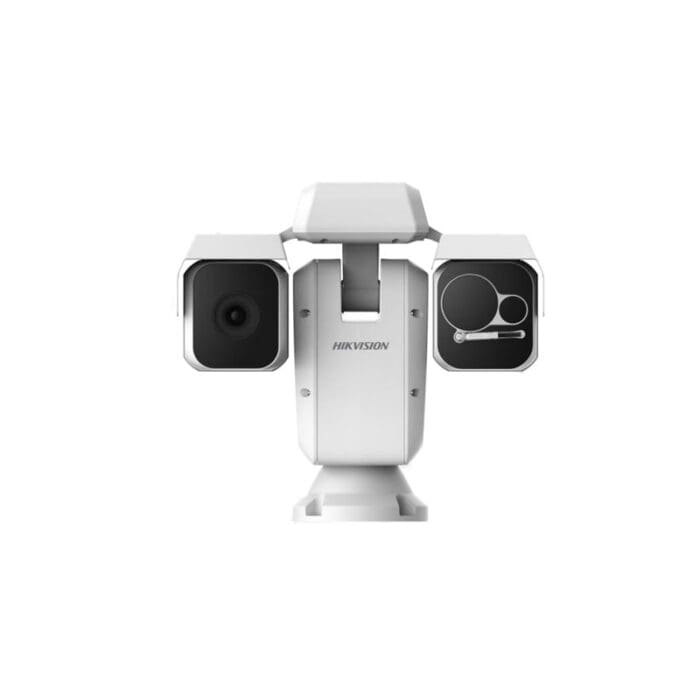

Quick Specs Figure 1 shows the appearance of DS-2TD6266-75C2L/V2.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Product Name | Thermal & Optical Bi-spectrum Network Positioning System |
| Model | DS-2TD6266-75C2L/V2 |
| Thermal Resolution | 640 x 512 |
| Optical Resolution | 1920 x 1080 |
| Thermal Lens | 75mm |
| Optical Lens | 8-32mm |
| Sensitivity | �� 40mK |
| Image Sensor | 1/1.8�� progressive scan CMOS |
| Min. Illumination | 0.002 Lux @ (F1.2, AGC ON) |
| Field of View (Thermal) | 8.3�� x 6.6�� (H x V) |
| Field of View (Optical) | 48�� to 2.9�� (H) |
| Digital Zoom | 32x |
| Day/Night Mode | Switchable |
| Audio Input/Output | 1 input (line in), 1 output (line out) |
| Alarm Input/Output | 7 inputs, 2 outputs |
| PTZ Control | 360�� endless |
| Operating Temperature | -40��C to 65��C (-40��F to 149��F) |
| Power Supply | 24V AC |
| Power Consumption | Max 95W |
| Network Interface | 1 RJ45 10M/100M Ethernet Interface |
| Ingress Protection | IP66 |
| Dimensions | 480 x 245 x 198 mm |
| Weight | Not Included |
