DS-2TM06-NF
Model: DS-2TM06-NF – Hikvision Commercial Vision Thermal Cameras
Details: Thermal Camera Core
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TM06-NF Overview

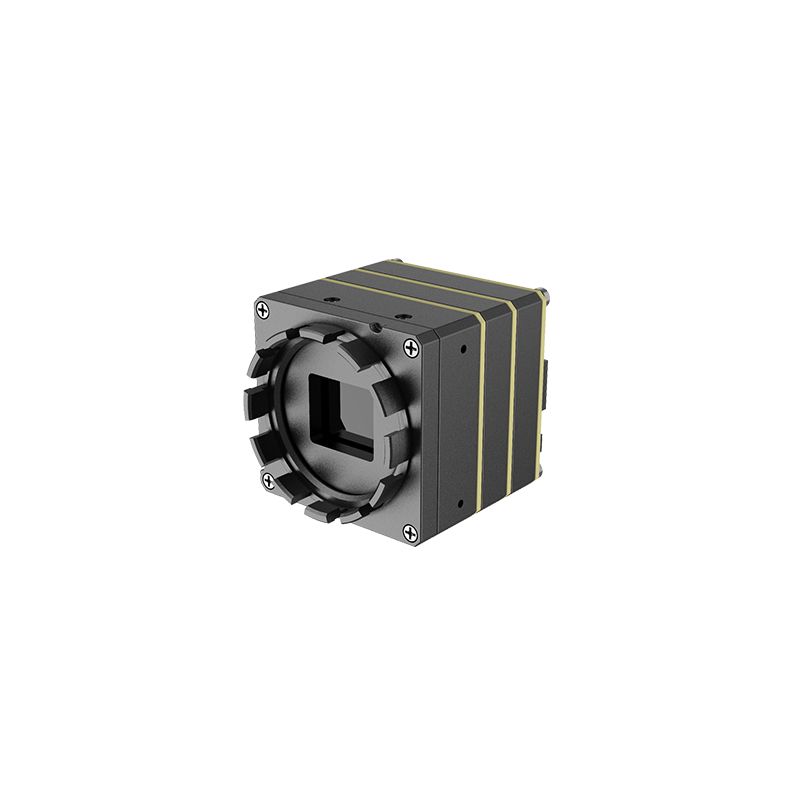

Quick Specs Figure 1 shows the appearance of DS-2TM06-NF.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model Name | DS-2TM06-NF |
| Product Type | Thermal Camera Core |
| Resolution | 640 �� 512 |
| Pixel Pitch | 12 ��m |
| Spectral Range | 8 to 14 ��m |
| NETD | < 50 mK (at 25��C, F#=1.0) |
| Frame Rate | 50 Hz |
| Focus Mode | Manual |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Image Processing | Yes |
| Video Output | LVDS |
| LVDS Interface Speed | 600 Mbps |
| Control Interface | RS232/RS485 |
| Storage Temperature | -40��C to 70��C |
| Operating Temperature | -20��C to 55��C |
| Power Supply | 4-6 VDC |
| Power Consumption | 2.5W (Max) |
| Dimensions | 40 mm x 40 mm x 60 mm |
| Lens Options | 19 mm, 25 mm, 35 mm, 50 mm |
| Relative Humidity | 95% or less (non-condensing) |
| Shock Resistance | 30 g, 11 ms, 3 axis |
| Vibration Resistance | 10 Hz to 150 Hz, 0.075 mm peak to peak |
