DS-3E0505P-E/M
Model: DS-3E0505P-E/M – Hikvision Network Switches
Details: 4 Port Gigabit Unmanaged POE Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-3E0505P-E/M Overview

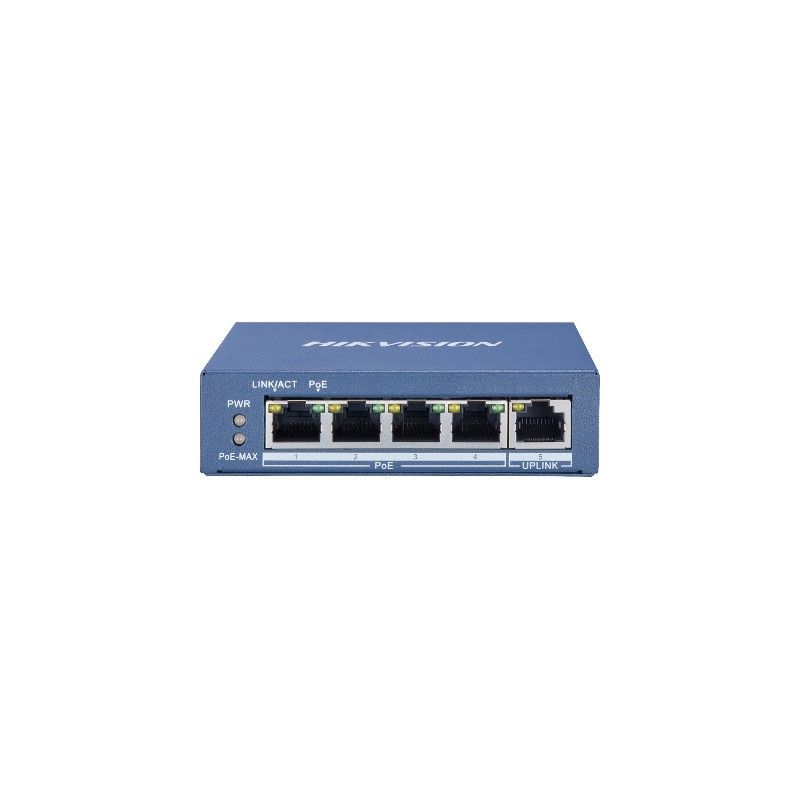

Quick Specs Figure 1 shows the appearance of DS-3E0505P-E/M.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-3E0505P-E/M |
| Ports | 4 Gigabit POE Ports + 1 Gigabit Uplink Port |
| Total PoE Power Budget | 58W |
| Switch Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.125 Mbit |
| Dimensions (W x D x H) | 100 mm x 100 mm x 25 mm |
| Installation Design | Desk/Wall mounting |
| PoE Standard | IEEE 802.3af/at |
| Input Voltage | DC 48V |
| Operating Temperature | 0??C to 40??C |
| Storage Temperature | -40??C to 85??C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
| LED Indicators | Power, Link/Act, PoE |
| Power Consumption | Max 63W (PoE on), Max 3.3W (PoE off) |
| Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at |
| Certifications | CE, FCC, RoHS |
