DS-7208HQHI-K1
Model: DS-7208HQHI-K1 – Hikvision Turbo HD DVR
Details: 8-ch 1080p 1U H.265 DVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7208HQHI-K1 Overview

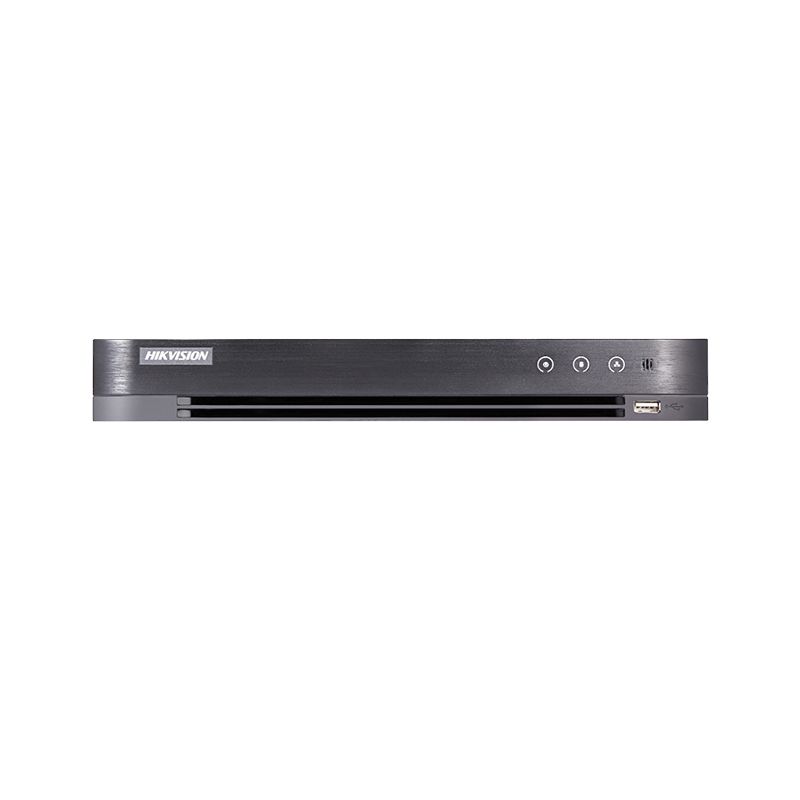

Quick Specs Figure 1 shows the appearance of DS-7208HQHI-K1.
Table 1 shows the Quick Specs.
| Model | DS-7208HQHI-K1 |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF, |
| Frame Rate | Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 8-ch BNC interface (1.0 Vp-p, 75Ω), supporting coaxitron connection |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
| Synchronous Playback | 8-ch |
| HDTVI Input | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1., |
| VGA/HDMI Output | 1-ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75Ω), resolution: PAL: 704×576, NTSC: 704×480 |
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | 2×USB 2.0 |
| Serial Interface | RS-485 (half-duplex) |
| Power Supply | 12 VDC |
| Working Temperature | -10°C to +55°C (+14°F to +131°F) |
| Working Humidity | 10 to 90 % |
| Dimension (W × D × H) | 315×242×45 mm (12.4×9.5×1.8 inch) |
| Consumption (Without HDD) | ≤7.5 W |
