DS-7216HGHI-F1/N
Model: DS-7216HGHI-F1/N – Hikvision Turbo HD DVR
Details: 16-ch 1080p Lite 1U H.264 DVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7216HGHI-F1/N Overview

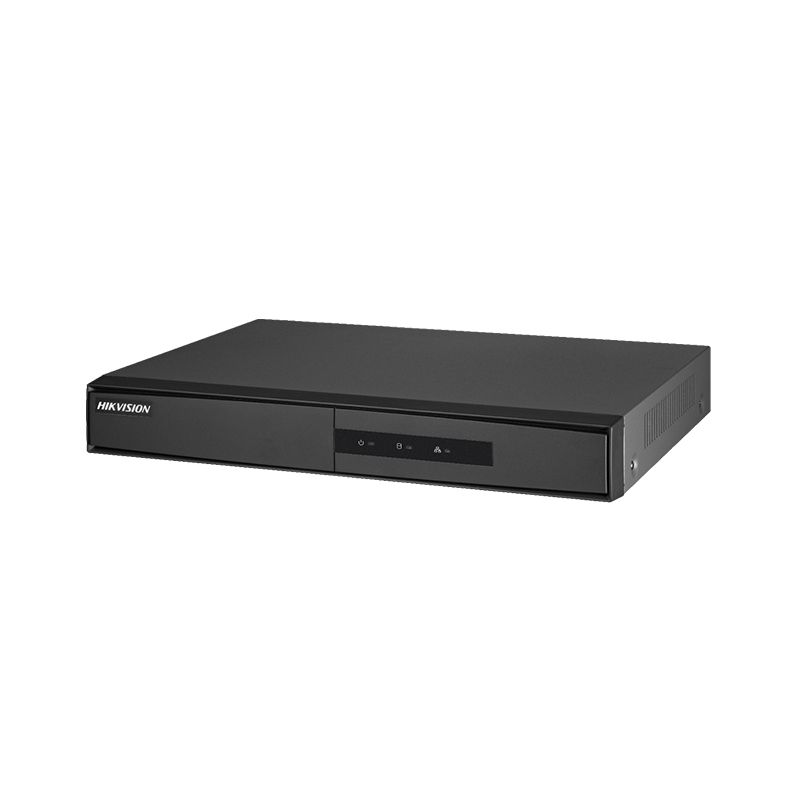

Quick Specs Figure 1 shows the appearance of DS-7216HGHI-F1/N.
Table 1 shows the Quick Specs.
| Video Compression | H.264+/H.264 |
| Encoding Resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIFWhen 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream:When 1080p lite mode enabled:1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)When 1080p lite mode not enabled:For 720p stream access:720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)For SD stream access:WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bit Rate | 64 Kbps |
| IP Video Input | 2-ch (up to 18-ch) Up to 960p resolution Support H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75Ω) |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SATA | 1 SATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| Alarm In/Out | N/A |
| USB Interface | Rear panel: 2×USB 2.0 |
| Power Supply | 12 VDC |
| Consumption (Without HDD) | ≤20 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Dimensions (W×D×H) | 260×222×45 mm (10.2×8.7×1.8 inch) |
