DS-7604NI-K1/4P
Model: DS-7604NI-K1/4P – Hikvision Pro Series NVR
Details: Hikvision 4-ch 1U 4 PoE 4K NVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7604NI-K1/4P Overview

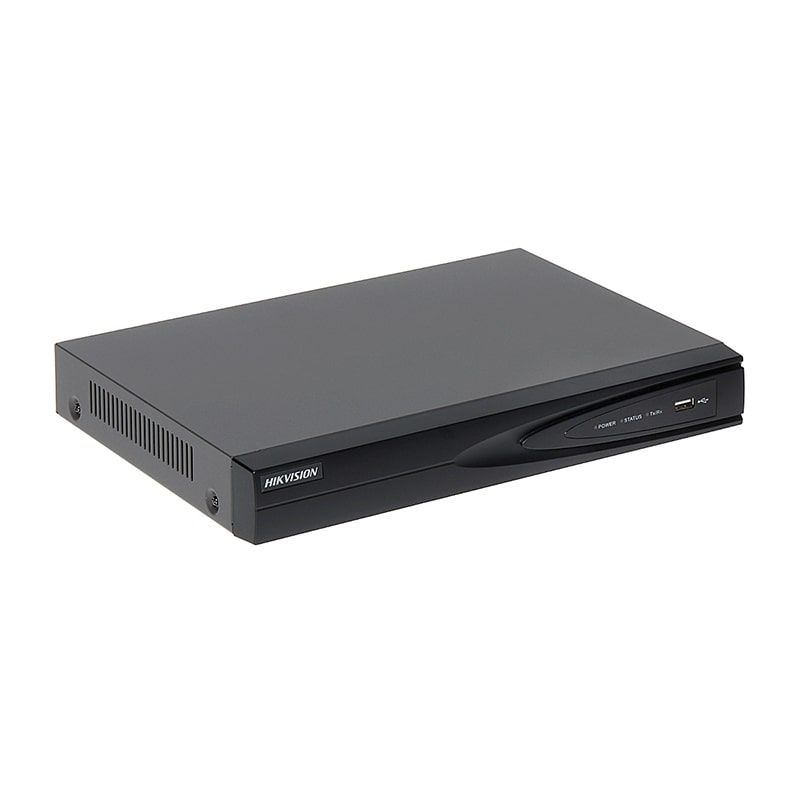

Quick Specs Figure 1 shows the appearance of DS-7604NI-K1/4P.
Table 1 shows the Quick Specs.
| Model | DS-7604NI-K1/4P |
| IP Video Input | 4-ch |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 4K（4096×2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz |
| VGA Output | 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
| Synchronous Playback | 4-ch |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPâ„¢, HTTPS |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Interface | 4-ch |
| Power | ≤50 W |
| Standard | IEEE 802.3 af/at |
| RAID Type | No |
| SATA | 1 |
| Capacity | Up to 8TB capacity for each disk |
| USB Interface | 2 × USB 2.0 |
| Alarm In/Out | N/A (4/1 is optional) |
| Power Supply | 48 VDC, 1.35 A |
| Consumption | ≤10 W (without enabling PoE) |
| Working Temperature | -10 to +55° C (14 to 131° F) |
| Working Humidity | 10 to 90 % |
| Chassis | 1U |
| Dimension (W × D × H) | 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) |
