DS-KB2421-IM
Model: DS-KB2421-IM – Hikvision 4-Wire Series (Analog)
Details: Water-proof Analog Four Wire Door Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-KB2421-IM Overview

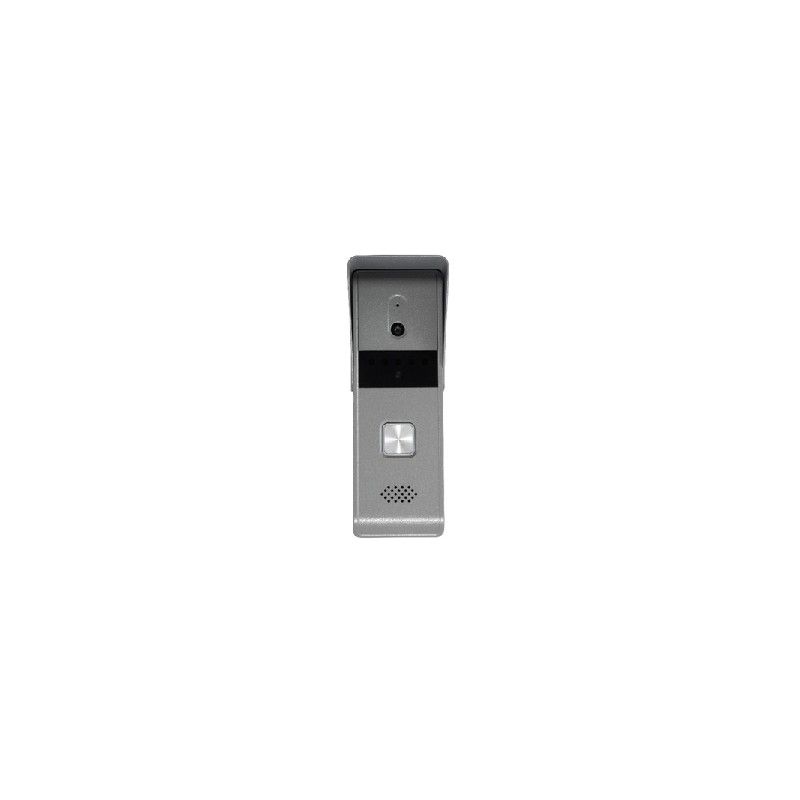

Quick Specs Figure 1 shows the appearance of DS-KB2421-IM.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-KB2421-IM |
| Type | Analog Four Wire Door Station |
| Water-proof | Yes |
| Material | Metal |
| Camera Resolution | 720 TVL |
| Night Vision | Yes |
| Operating Temperature | -30??C to 60??C (-22??F to 140??F) |
| Storage Temperature | -40??C to 70??C (-40??F to 158??F) |
| Operating Humidity | 10% to 95% |
| Dimensions | 130mm x 96mm x 33mm |
| Mounting Type | Surface Mount |
| Video Output | 1Vp-p Composite Output (75??/BNC) |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Power Supply | DC 12V |
| Power Consumption | Max 5W |
| Protection Level | IP65 |
| Indicator | LED Status Indicator |
| Button | One Call Button |
