DS-KD8003-IME1
Model: DS-KD8003-IME1 – Hikvision Access Control
Details: KD8 Series Pro Modular Door Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-KD8003-IME1 Overview

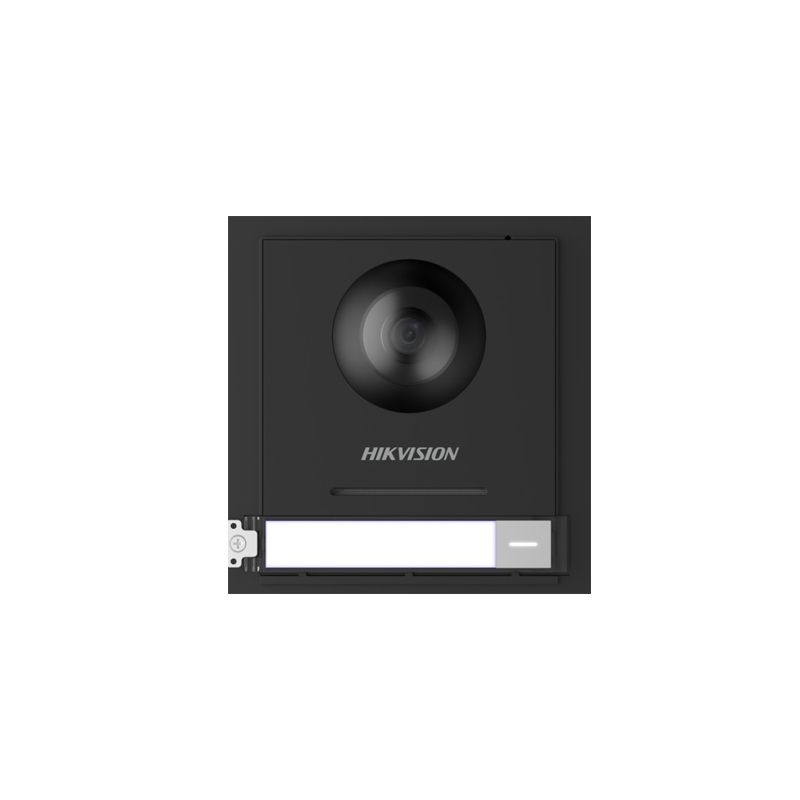

Quick Specs Figure 1 shows the appearance of DS-KD8003-IME1.
Table 1 shows the Quick Specs.
| Processor | Embedded MCU Processor |
| Operation System | Embedded Linux Operation System |
| Supplement Light | IR Supplement |
| Video Compression Standard | H.264 |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker (More than 85 dB within 20 cm) |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocol | TCP/IP, RTSP |
| Alarm Input | Tampering Alarm |
| I/O Input | 4 |
| I/O Output | 2 |
| Power Supply | 12 VDC/PoE ( IEEE 802.3af) |
| Power Consumption | 4 W |
| Working Temperature | -40° C to +55° C (-40° F to 131° F) |
| Working Humidity | 10% to 95% |
| Protective Level | IP65 |
| Dimensions (L × W × H) | 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″) |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian |
