DS-KV8103-IME2
Model: DS-KV8103-IME2 – Hikvision Video Intercom
Details: 2-Wire Door Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-KV8103-IME2 Overview

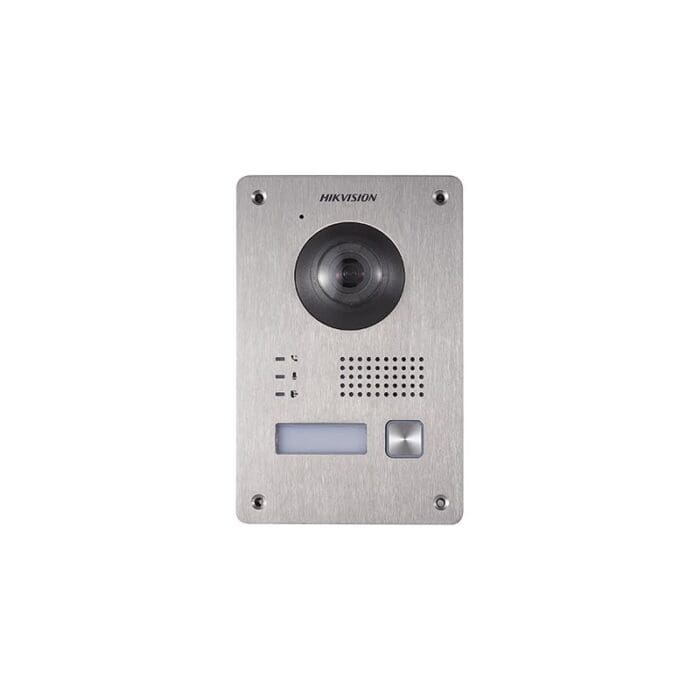

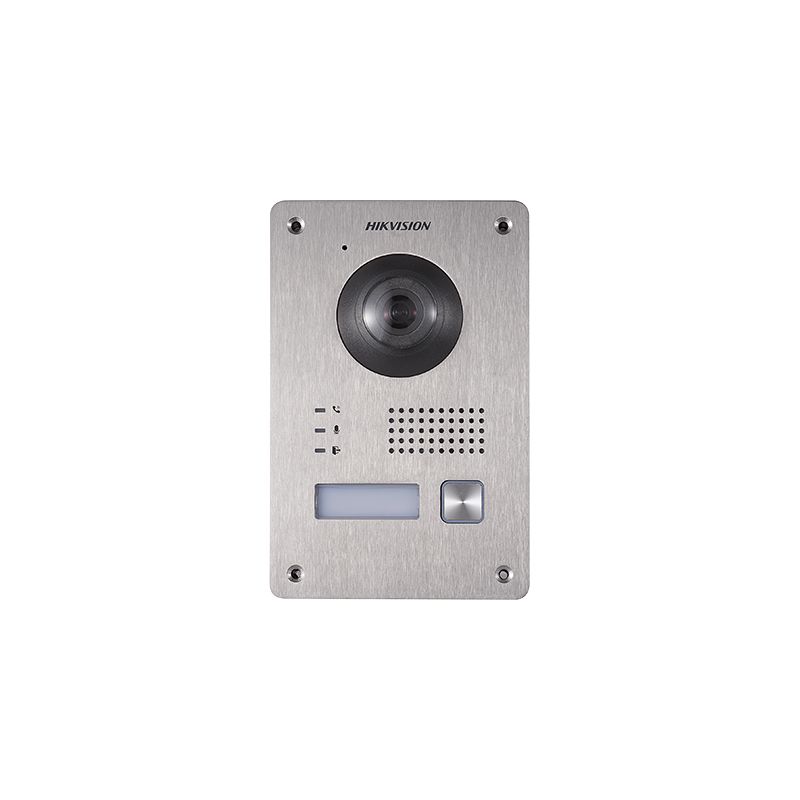

Quick Specs Figure 1 shows the appearance of DS-KV8103-IME2.
Table 1 shows the Quick Specs.
| Operation System | Embedded Linux Operation System |
| Processor | High-Performance Embedded SOC Processor |
| Camera | CMOS Low Illumination 2 MP HD Colorful 155° Fisheye Camera |
| Video Compression Standard | H.264 |
| Resolution | 1920 x 1080 |
| Video frame rate | PAL: 25 fps, NTSC: 30 fps |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Network Protocol | TCP/IP, RTSP |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Exit button | Exit Button for Opening the Door |
| Door Magnetic Detection | Detects Door Magnetic Status |
| Light Supplement Mode | IR Supplement |
| Alarm Input | Door Magnetic Alarm, Tampering Alarm |
| I/O Output | 1-ch 12 VDC Output |
| I/O Input | 2 |
| RS-485 | 1 RS-485 Half-Duplex Port |
| Network Interface | Two-Wire Interface |
| Power Supply | 24 VDC, Power Over Network Cable (DS-KAD709) |
| Power Consumption | ≤12 W |
| Material | Stainless Steel |
| Working Humidity | 10% to 90% |
| Working Temperature | -30° C to +60° C (-22° F to 140° F) |
| Dimensions(L × W × H) | 163 mm x 104 mm x 44 mm (6.42″ x 4.09″ x 1.73″) |
| IP Protection Level | IP65 |
