Sold out
DS-PD1-BG9
Model: DS-PD1-BG9 – Hikvision Intrusion Detectors
Details: Wired glass break detector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PD1-BG9 Overview

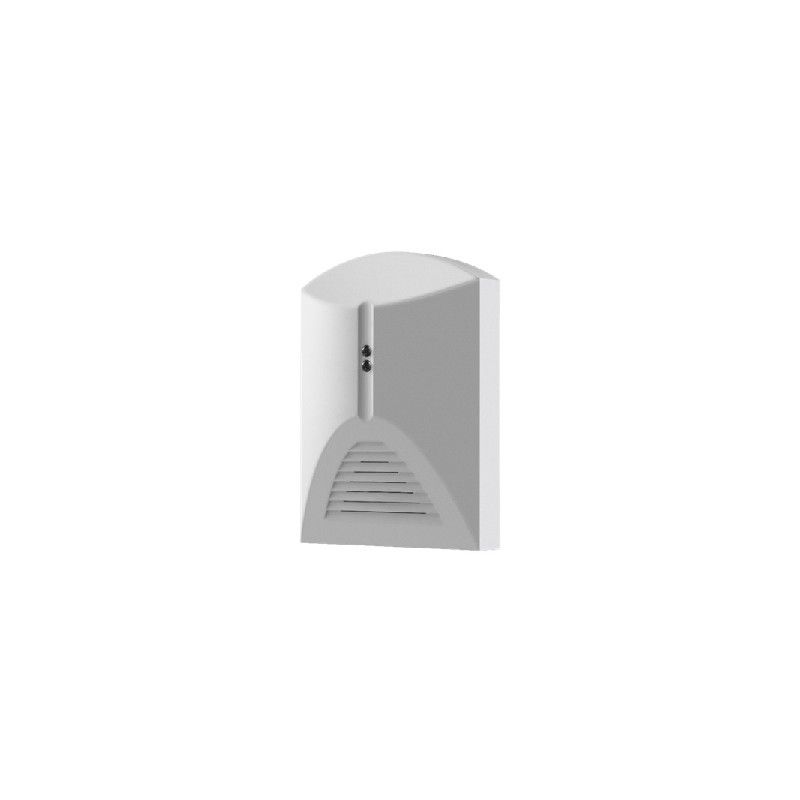

Quick Specs Figure 1 shows the appearance of DS-PD1-BG9.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PD1-BG9 |
| Type | Wired glass break detector |
| Detection Method | Sound Analysis |
| Coverage Area | Up to 9 meters (30 feet) |
| Alarm Output | Normally Closed (NC) Relay |
| Sensitivity Levels | Adjustable |
| Power Supply | 12 VDC |
| Current Draw | 20 mA (Standby), 30 mA (Alarm) |
| Tamper Protection | Yes |
| Operating Temperature | -10??C to 50??C (14??F to 122??F) |
| Humidity | 95% RH (Non-condensing) |
| Dimensions | 88 mm ?? 62 mm ?? 41 mm |
| Housing Material | ABS Plastic |
| Color | White |
| Certifications | CE, FCC |
| Application | Indoor use |
| Mounting Options | Wall, Ceiling |
| Compatibility | Works with most security systems |
| Warranty | 2 Years |
