Sold out
DS-PD1-MC-MS
Model: DS-PD1-MC-MS – Hikvision Intrusion Detectors
Details: Surface mounted magnetic contact
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PD1-MC-MS Overview

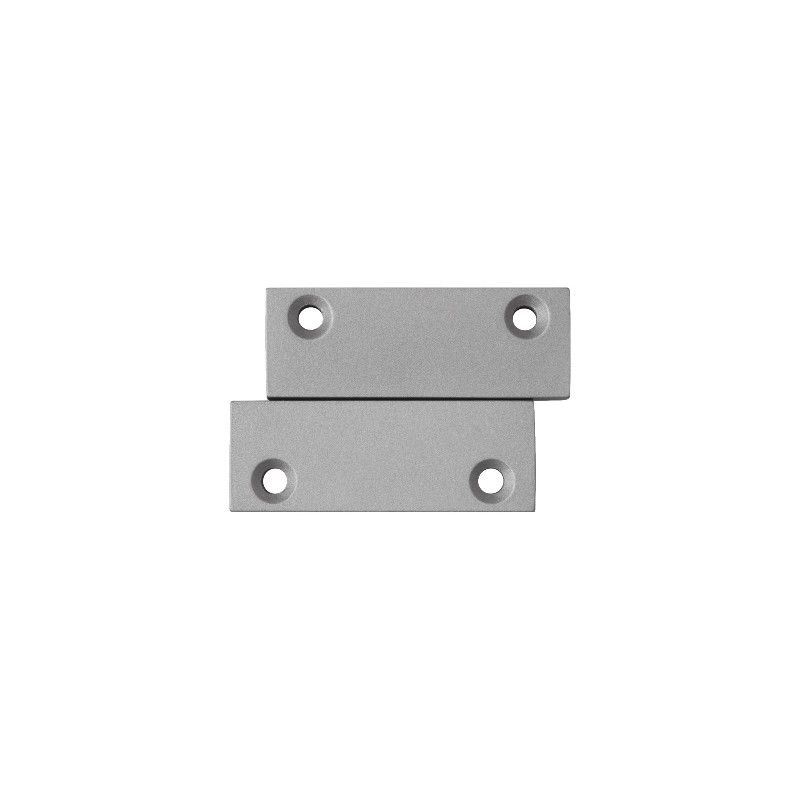

Quick Specs Figure 1 shows the appearance of DS-PD1-MC-MS.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PD1-MC-MS |
| Type | Surface Mounted Magnetic Contact |
| Operation Mode | NC (Normally Closed) |
| Design | Two-piece set with magnet and contact |
| Material | ABS Plastic |
| Color | White |
| Mounting Method | Screw-in |
| Dimensions (Magnet) | 15mm x 12mm x 2mm |
| Dimensions (Contact) | 26mm x 10mm x 2mm |
| Switching Distance | 25-30mm |
| Operating Temperature | -10��C to +50��C |
| Storage Temperature | -20��C to +60��C |
| Max Voltage Rating | 100V DC |
| Max Current Rating | 500mA |
| Contact Resistance | 150m�� Max |
| Insulation Resistance | 1000M�� Min |
| Contact Material | Reed Switch |
| Applications | Doors, Windows, Cabinets |
| Compliance | CE, RoHS |
Get more information
Do you have any question about the DS-PD1-MC-MS?
Contact us now via Live Chat or sales@metafinitivetech.com
