DS-PD2-D15E
Model: DS-PD2-D15E – Hikvision Intrusion Detectors
Details: Wired internal 15m Dual-technology PIR detector
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PD2-D15E Overview

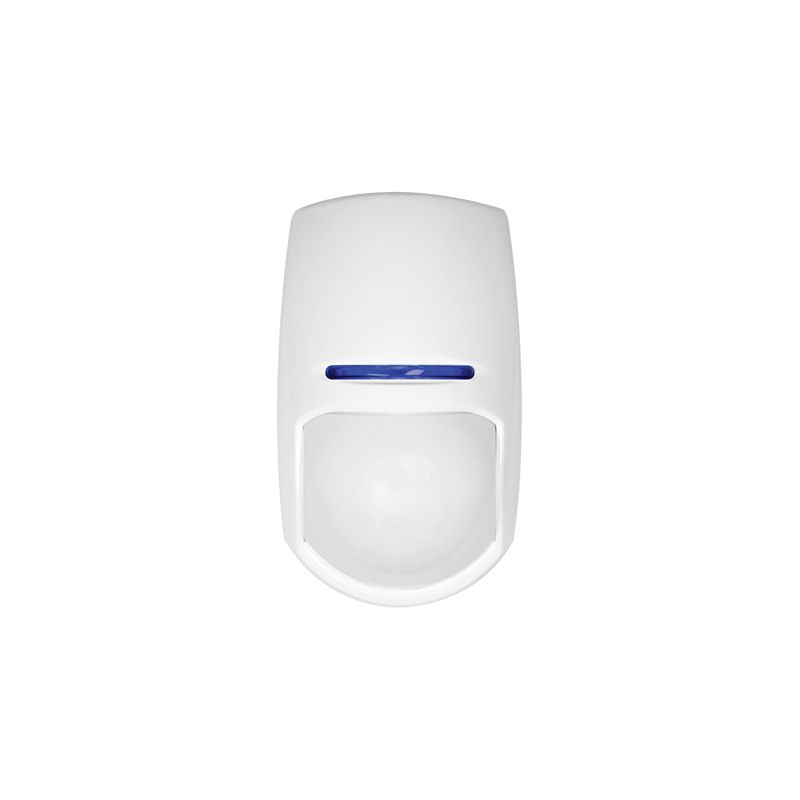

Quick Specs Figure 1 shows the appearance of DS-PD2-D15E.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PD2-D15E |
| Technology | Dual-technology PIR |
| Installation | Wired |
| Detection Range | 15 meters |
| Detection Zones | Pet-immunity zones |
| Sensitivity | Adjustable |
| Alarm Output | Form A or B dry relay contact |
| Power Supply | 9 to 16 VDC |
| Current Draw | 10mA typical, 12mA max |
| Operating Temperature | -10??C to 50??C |
| Storage Temperature | -25??C to 70??C |
| Humidity | 95% non-condensing |
| Environmental Rating | IP40 |
| Dimensions | 110mm x 60mm x 45mm |
| Mounting Height | 1.8m to 2.4m |
| Field of View | 85?? |
| LED Indicators | Yes, selectable |
| Certification | CE, FCC |
| Housing Material | ABS plastic |
| Bracket Support | Yes |
