Sold out
DS-PHA20-P
Model: DS-PHA20-P – Hikvision Intrusion Alarm Panels
Details: DS-PHA20-P
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PHA20-P Overview

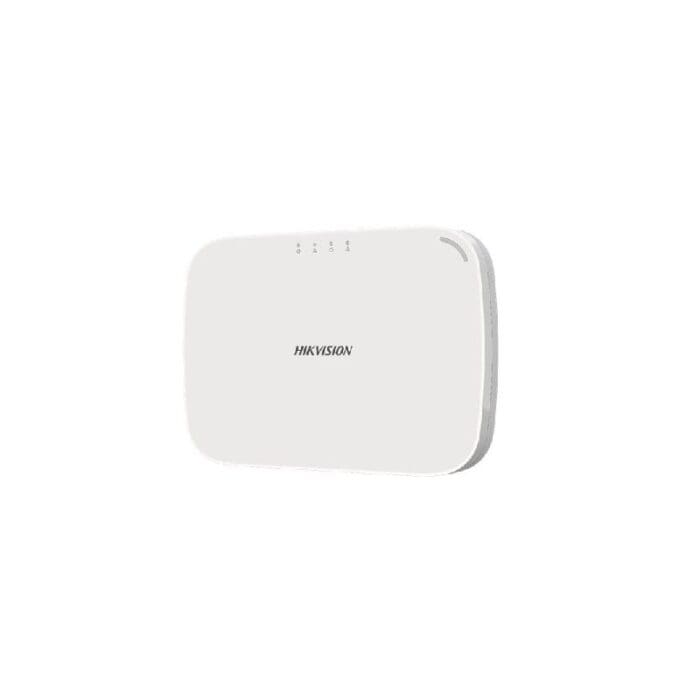

Quick Specs Figure 1 shows the appearance of DS-PHA20-P.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PHA20-P |
| Product Type | Hybrid Security Control Panel |
| Zones | 20 Zones |
| Wired Zones | 10 Wired Zones |
| Wireless Zones | 10 Wireless Zones |
| Outputs | 5 Programmable Outputs |
| Event Log | Records up to 1000 Events |
| Keypad Connections | Up to 4 Keypads Supported |
| Communication | Ethernet Port, PSTN, GPRS/3G/4G LTE |
| Power Supply | AC 100-240V, 50/60Hz |
| Backup Battery | 12V, 7Ah |
| Alarm Reporting | Central Monitoring Station, SMS, Email |
| Control Methods | Keypad, Mobile App, Keyfob |
| Programming Interface | Local and Remote Programming |
| Standby Time | Up to 24 Hours with Backup Battery |
| Environmental Conditions | Operating Temperature: -10 to 55��C |
| Dimensions | 260 x 215 x 86 mm |
| Mounting | Wall Mountable |
| Compliance | CE, FCC, RoHS |
| Packaging | Includes Control Panel, Power Adapter, Quick Start Guide |
