DS-PHA20-W2B
Model: DS-PHA20-W2B – Hikvision Intrusion Alarm Panels
Details: Hybrid control panel PCB
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PHA20-W2B Overview

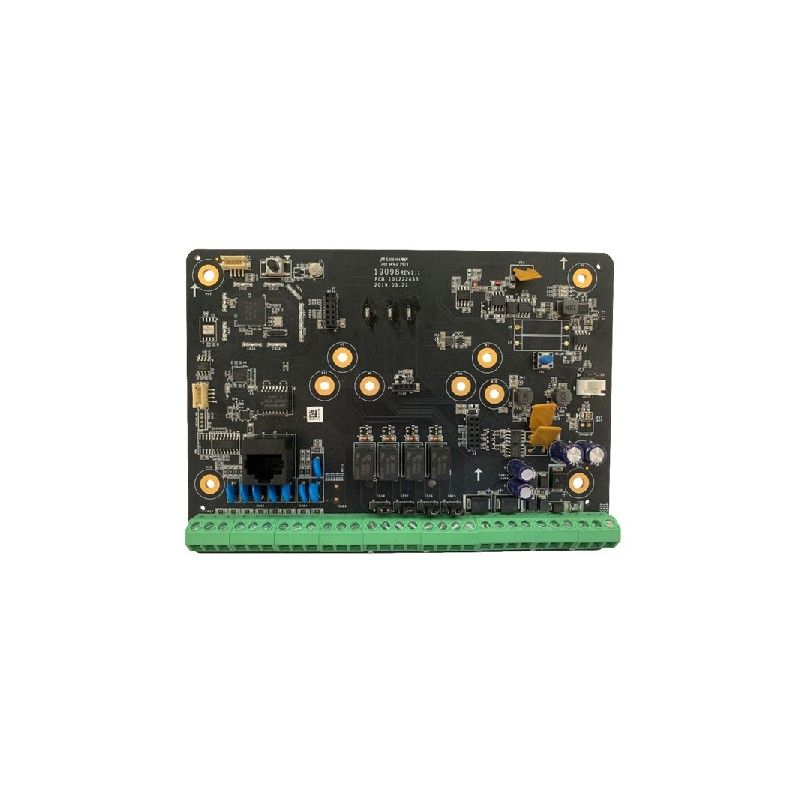

Quick Specs Figure 1 shows the appearance of DS-PHA20-W2B.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PHA20-W2B |
| Type | Hybrid Control Panel PCB |
| Zone Capacity | 20 zones |
| Connection Interface | RS485, RJ45 |
| Communication Protocol | TCP/IP, Wi-Fi |
| Transmission Distance | Up to 1000 meters |
| Power Supply | 12V DC |
| Input Current | Max. 2A |
| Battery Backup | 12V 7Ah rechargeable battery |
| Temperature Range | -10��C to 55��C |
| Humidity | 10% to 90% (non-condensing) |
| Alarm Notification | SMS, Email, Push Notifications |
| Programming | Via keypad, software, or mobile app |
| Expandable | Yes, supports additional modules |
| Event Log | 1000 events |
| Certification | CE, FCC |
| Languages Supported | Multi-language |
| Warranty | 2 years |
| Dimensions | 295 mm x 195 mm x 39 mm |
