DS-PM-MO4-H
Model: DS-PM-MO4-H – Hikvision Intrusion Alarm Panels
Details: M-BUS Output Expander
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-PM-MO4-H Overview

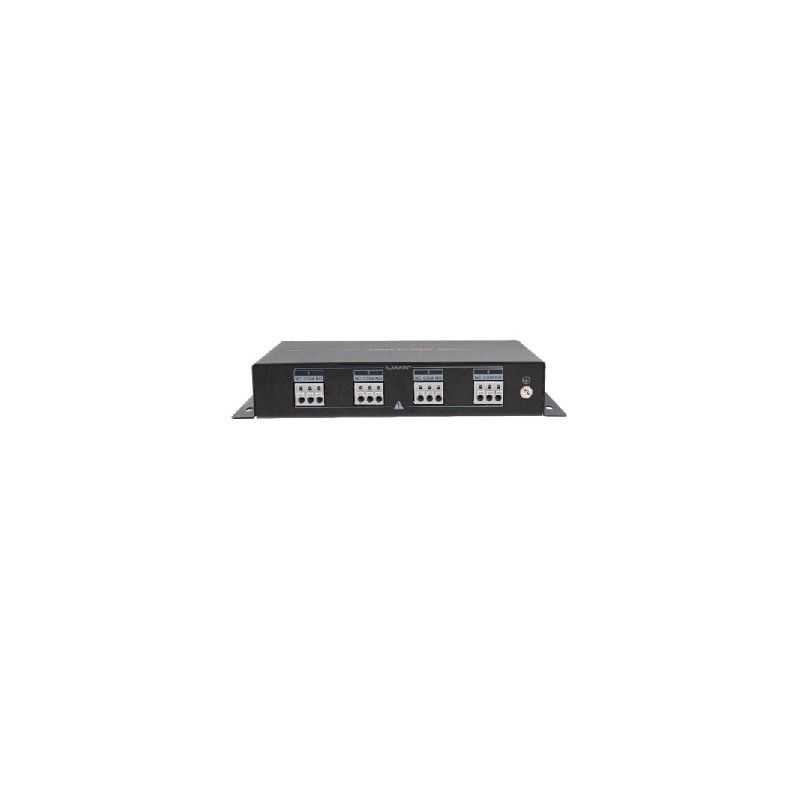

Quick Specs Figure 1 shows the appearance of DS-PM-MO4-H.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-PM-MO4-H |
| Product Type | M-BUS Output Expander |
| Input Voltage | 9-15VDC |
| Number of Outputs | 4 |
| Output Type | Open Collector |
| Output Current | Maximum 1A per output |
| Connection Type | Screw Terminals |
| Operating Temperature | -10��C to 55��C |
| Storage Temperature | -20��C to 65��C |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions | 138 x 90 x 38 mm |
| Certification | CE, FCC |
| LED Indicators | Power, Communication |
| Power Consumption | Maximum 350mA |
| Compatibility | Hikvision M-BUS System |
| Casing Material | Plastic |
| Color | White |
| Mounting Options | Wall Mount |
| Warranty | 2 years |
